| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | EX-B365M-V5 |
| General Information | ||
| Model | EX-B365M-V5 |
|
| Brand | Asus | |
| Supported Processor | 8th/9th Generation Intel Core, Pentium Gold and Celeron Processors | |
| Chipset | Intel® B365 | |
| Socket | LGA1151 | |
| Form Factor | uATX Form Factor, 8.9 inch x 7.2 inch ( 22.6 cm x 18.28 cm ) | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Slot | 2 x DIMM | |
| Supported Bus Speed | 2666/2400/2133 MHz | |
| Maximum Memory | 32GB | |
| Graphics Information | ||
| Graphics | * Integrated Graphics Processor- Intel® HD Graphics support * Multi-VGA output support : HDMI/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz * Maximum shared memory of 1024 MB (for iGPU exclusively) * Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
|
| Expansion Slots | ||
| PCI | * 1 x PCIe 3.0/2.0 x16 (x16 mode) * 2 x PCIe 3.0/2.0 x1 |
|
| Storage Information | ||
| M.2 | 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) |
|
| SATA | 4 x SATA 6Gb/s port(s) | |
| Connector Information | ||
| Internal Connectors | * 1 x AAFP connector * 2 x USB 2.0 connector(s) support(s) additional * 4 USB 2.0 port(s) * 1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices * 4 x SATA 6Gb/s connector(s) * 1 x CPU Fan connector(s) * 1 x Chassis Fan connector(s) * 1 x 24-pin EATX Power connector(s) * 1 x 8-pin EATX 12V Power connectors * 1 x Internal speaker connector(s) * 1 x System panel(s) * 1 x Clear CMOS jumper(s) * 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
|
| Port Information | ||

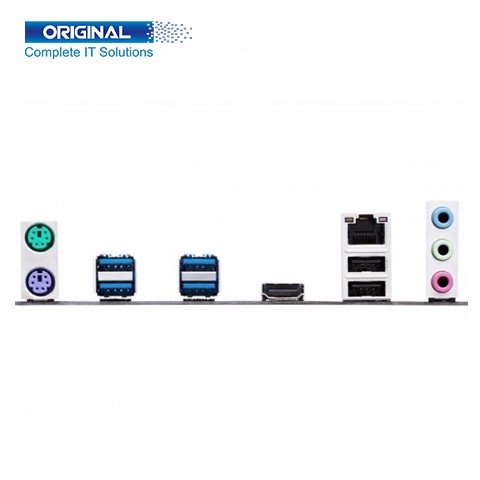

| PS/2 Port | * 1 x PS/2 keyboard (purple) * 1 x PS/2 mouse (green) |
|
| USB Port | * 6 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board) * 6 x USB 2.0/1.1 port(s) (2 at back panel, red, 4 at mid-board) |
|
| HDMI Port | 1 x HDMI |
|
| D-Sub Port | 1 x D-Sub | |
| LAN Port | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) | |
| Audio Port | Realtek® ALC887 8-Channel High Definition Audio CODEC | |
| Operating System | ||
| Supported OS | Windows® 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|

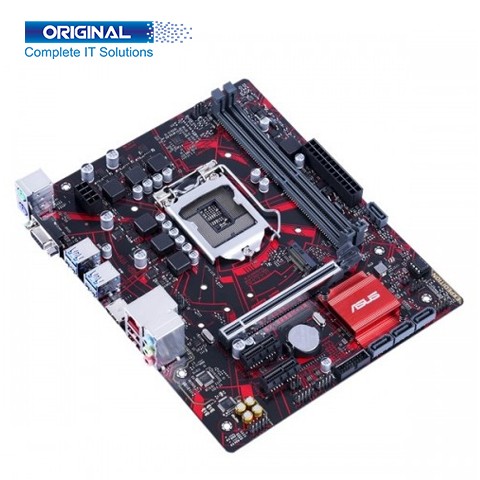

Asus EX-B365M-V5 motherboard gives you the strong foundation you expect in your first form and the versatility of developing with your aspirations. We've put together all the cool stuff with essential planning and design in the latest 8th/9th Generation Intel Core, Pentium Gold, and Celeron Processors support so that you can benefit from industry-driven advances, including tuning of mechanical structures. Extensive cooling control, and lively locally available sound.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Asus EX-B365M-V5 motherboard comes with Intel LGA1151 Socket for 8th/9th Generation Intel Core, Pentium Gold and Celeron Processors, Chipset Intel B365, mATX Form Factor, (22.6 cm x 18.28 cm), It is Dual Channel 2 x DIMM DDR4 and Maximum Memory 32GB, Supported Bus Speed is 2666/ 2400/ 2133 MHz, In this Asus EX-B365M-V5 motherboard, It is Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz, also, supports D-sub with max. resolution 1920 x 1200 @ 60 Hz, and maximum shared memory of 1024 MB (for iGPU exclusively), Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider. Also in this Asus EX-B365M-V5 motherboard, Expansion Slots are 1 x PCIe 3.0/2.0 x16 (x16 mode), 2 x PCIe 3.0/2.0 x1. In addition, Storage ports are 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 capacity gadgets support (SATA mode and X4 PCIE mode), 4 x SATA 6Gb/s port(s). Also in this motherboard, Internal Connectors are 1 x 24-pin EATX Power connector(s), 1 x 8-pin EATX 12V Power connectors, 2 x USB 2.0 connector(s) support(s) additional * 4 USB 2.0 port(s), 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports, 1 x Internal speaker connector(s), 1 x PS/2 keyboard and mouse. 6 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board), 6 x USB 2.0/1.1 port(s) (2 at back panel, red, 4 at mid-board), Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), Realtek® ALC887 8-Channel High Definition Audio CODEC.
Asus Expedition EX-B460M-V5 motherboard OS Support Windows® 10 64-bit. You can enjoy a 03 Years Warranty. Purchase Motherboard from Original Store Ltd and get online conveyance on any side of Bangladesh.
