| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asrock |
| General Information | ||

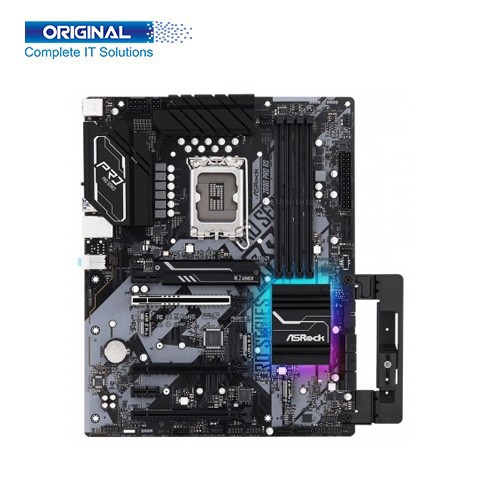

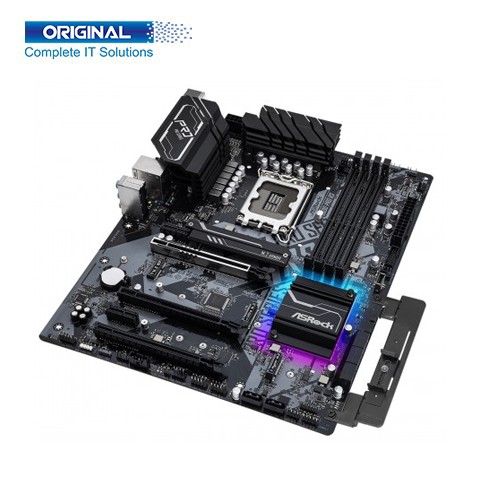

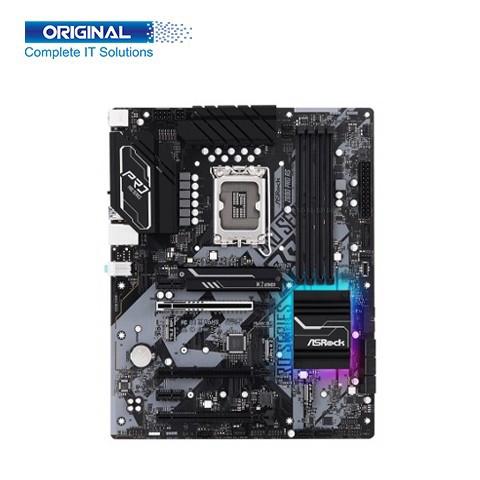

| Model | ASRock Z690 Pro RS | |
| Brand | ASRock | |
| Supported Processor | LGA1700 | |
| Chipset | Supports 13th 12th Gen Intel Core Processors | |
| Socket | LGA1700 | |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
|
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- Solid Capacitor design
- 2oz Copper PCB |
|
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | - 4 x DDR4 DIMM Slots | |
| Supported Bus Speed | - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode) |
|
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
|
| Expansion Slots | ||
| PCI | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1 x PCIe 3.0 x16 Slot (PCIE5), supports x4 mode* - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) - Supports AMD CrossFire |
|
| Storage Information | ||
| M.2 | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode* |
|
| SATA | - 8 x SATA3 6.0 Gb/s Connectors** | |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
|
| Connector Information | ||
| Internal Connectors | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) |
|
| Port Information | ||

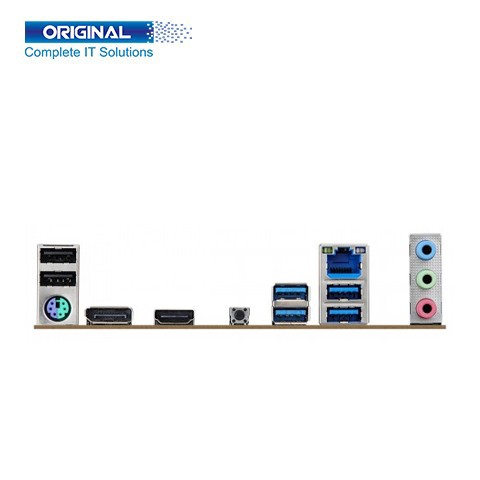

| PS/2 Port | - 1 x PS/2 Mouse/Keyboard Port | |
| HDMI Port | - 1 x HDMI Port | |
| USB Port | - 2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection) |
|
| Display Port | - 1 x DisplayPort 1.4 | |
| LAN Port | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| Audio Port | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Antenna | - 3 x Antenna Mounting Points | |
| Flashback Button | - 1 x BIOS Flashback Button | |
| Others Information | ||
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version) | |
| Operating Systems | ||
| Supported OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty | |
ASRock Z690 Pro RS 12th Gen ATX Intel Motherboard. It supports the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high-end graphic cards.
ASRock Z690 Pro RS 12th Gen ATX Intel Motherboard. The Model is ASRock Z690 Pro RS and Brand ASRock, Supported Processor LGA1700, Chipset Supports 13th 12th Gen Intel Core Processors, Socket LGA1700, BIOS- 128Mb AMI UEFI Legal BIOS with multilingual GUI support, - ACPI 6.0 Compliant wake-up events, - SMBIOS 2.7 Support, - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment, Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, - Solid Capacitor design, - 2oz Copper PCB, Memory Types DDR4, Channel Dual Channel, Slot - 4 x DDR4 DIMM Slots, Supported Bus Speed, Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*, - Supports ECC UDIMM memory modules (operate in non-ECC mode), Maximum Memory 128GB. It is Graphics- Intel Xe Graphics Architecture (Gen 12), - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers, - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz, - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports, PCI CPU:, - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode*, Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*, - 1 x PCIe 3.0 x16 Slot (PCIE5), supports x4 mode*, - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)*,- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT), - Supports AMD CrossFire, M.2 CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*, Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*, - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode* , SATA - 8 x SATA3 6.0 Gb/s Connectors**, AID- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices. This is PS/2 Port - 1 x PS/2 Mouse/Keyboard Port, HDMI Port - 1 x HDMI Port, USB Port - 2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection), - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection), - 2 x USB 2.0 Ports (Supports ESD Protection), Display Port - 1 x DisplayPort 1.4, LAN Port - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), Audio Port - 7.1 CH HD Audio (Realtek ALC897 Audio Codec), - HD Audio Jacks: Line in / Front Speaker / Microphone, Antenna - 3 x Antenna Mounting Points, Flashback Button - 1 x BIOS Flashback Button, Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Supported OS - Microsoft® Windows® 10 64-bit / 11 64-bit. The ASRock Z690 Pro RS 12th Gen ATX Intel Motherboard has a 03 Years Warranty.
