| Price | : | To be announced |
| Status | : | Up Comming |
| Brand | : | Asrock |
| Product Code | : | Z690 PG Velocita |
| General Information | ||
| Model | ASRock Z690 PG Velocita | |
| Brand | ASRock | |
| Supported Processor | Supports 13th and 12th Gen Intel Core Processors | |
| Chipset | - Intel Z690 | |
| Socket | LGA1700 | |
| BIOS | - 256Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, DRAM, VCCIN_AUX, +1.8V PROC, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
|
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 8 Layer PCB
- 2oz Copper PCB |
|
| Memory Information | ||
| Memory Types | DDR5 | |
| Channel | Dual Channel | |
| Slot | 4 x DDR5 DIMM Slots | |
| Supported Bus Speed | - Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)* | |
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
|
| Expansion Slots | ||
| PCI | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1 x PCIe 3.0 x16 Slot (PCIE5), supports x2 mode* - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE4)* - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
|
| Storage Information | ||
| M.2 | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Blazing M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode* |
|
| SATA | - 6 x SATA3 6.0 Gb/s Connectors | |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
|
| Connector Information | ||
| Internal Connectors | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x VRM Fan Connector (4-pin)****** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) - 1 x Clear CMOS Button - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED |
|

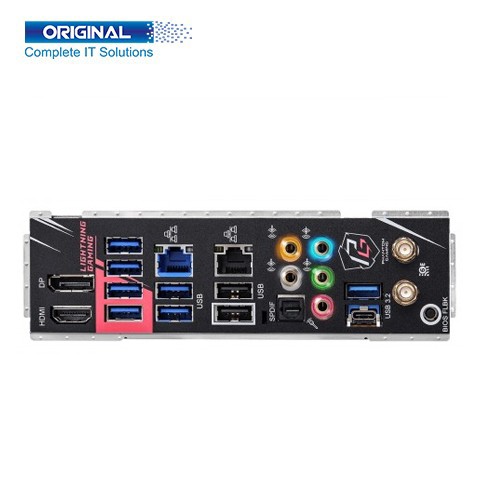

| Port Information | ||
| HDMI Port | - 1 x HDMI Port | |
| USB Port | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 6 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)*
- 2 x USB 2.0 Ports (Supports ESD Protection) |
|
| Display Port | - 1 x DisplayPort 1.4 | |
| LAN Port | - 2 x RJ-45 LAN Ports | |
| Audio Port | - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED) | |
| Antenna | - 2 x Antenna Ports | |
| Flashback Button | - 1 x BIOS Flashback Button | |
| SPDIF Out Port | - 1 x Optical SPDIF Out Port | |
| Others Information | ||
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version) | |
| Operating Systems | ||
| Supported OS | - Microsoft Windows 10 64-bit / 11 64-bit | |
| Warranty | ||
| Warranty | 03 Years Warranty | |

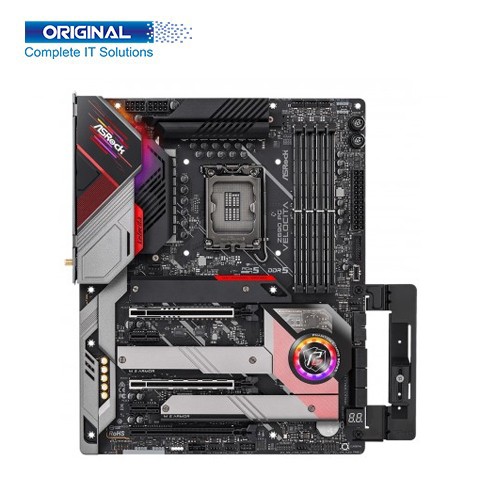

ASRock Z690 PG Velocita 12th Gen ATX Motherboard. Compares to a conventional DIP-style PCIe slot, the SMT-type PCIe slot improves signal flow and maximizes stability under high speed, a key breakthrough to fully support. This Motherboard is Ready to unleash the full potential of future high-end graphic cards.
ASRock Z690 PG Velocita 12th Gen ATX Motherboard. The Model is ASRock Z690 PG Velocita, Brand ASRock, Supported Processor Supports 13th and 12th Gen Intel Core Processors, Chipset - Intel Z690, Socket LGA1700, BIOS - 256Mb AMI UEFI Legal BIOS with multilingual GUI support, - ACPI 6.0 Compliant wake up events, - SMBIOS 2.7 Support, - CPU Core/Cache, CPU GT, DRAM, VCCIN_AUX, +1.8V PROC, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment, Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, - 8 Layer PCB, - 2oz Copper PCB and Memory Types DDR5, Channel Dual Channel, Slot 4 x DDR5 DIMM Slots, Supported Bus Speed - Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)*, Maximum Memory 128GB, Graphics - Intel® Xe Graphics Architecture (Gen 12), - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers, - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz, - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports. It is PCI CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*, Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode, - 1 x PCIe 3.0 x16 Slot (PCIE5), supports x2 mode, - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE4) ,- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT), - Supports AMD CrossFire, - 15μ Gold Contact in VGA PCIe Slot (PCIE1), M.2 CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*, - 1 x Blazing M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*, Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*, - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode*, SATA - 6 x SATA3 6.0 Gb/s Connectors, AID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices, HDMI Port - 1 x HDMI Port, SB Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection), - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection), - 6 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)*, - 2 x USB 2.0 Ports (Supports ESD Protection), Display Port - 1 x DisplayPort 1.4, LAN Port - 2 x RJ-45 LAN Ports, Audio Port - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED), Antenna - 2 x Antenna Ports, Flashback Button - 1 x BIOS Flashback Button, SPDIF Out Port - 1 x Optical SPDIF Out Port. The ASRock Z690 PG Velocita 12th Gen ATX Motherboard has a 03 Years Warranty.
