ASRock Z590 Steel Legend Wi-Fi 6E 10th and 11th Gen ATX Motherboard

Price :           To be announced
Status :           Up Comming
Brand :           Asrock
Product Code :           Z590

Short Details:

  • • Model: Z590 Steel Legend Wi-Fi 6E
  • • Chipset: Intel Z590
  • • Socket: LGA1200
  • • Memory Types: DDR4

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model Z590 Steel Legend Wi-Fi 6E
Brand ASRock
Supported Processor

* Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)

* Digi Power design

* 14 Power Phase design

* Supports Intel® Turbo Boost Max 3.0 Technology

* Supports Intel® K-Series unlocked CPUs

Chipset Intel Z590
Socket LGA1200
Bios

* 128Mb AMI UEFI Legal BIOS with multilingual GUI support

* ACPI 6.0 Compliant wake up events

* SMBIOS 2.7 Support

* CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VPPM, VCCIN AUX, VCCST Voltage Multi-adjustment

Form Factor

* ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

* 2oz Copper PCB

Memory Information
Memory Types DDR4
Channel Dual Channel
Slot 4 x DDR4 DIMM Slots
Supported Bus Speed

* 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)

* 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)

* Supports ECC UDIMM memory modules (operate in non-ECC mode)

* Supports Intel Extreme Memory Profile (XMP) 2.0

* 15μ Gold Contact in DIMM Slots

Maximum Memory Max. capacity of system memory: 128GB
Graphics Information
Graphics

- 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics

- Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1

- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc

- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers

- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

- Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)

- Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports

Expansion Slots
PCI

* 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 3 x PCIe 3.0 x1

* Graphics Output Options: HDMI, DisplayPort

* 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio

* 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4)

* 2 x Ultra M.2 (PCIe Gen3 x4 & SATA3)

Storage Information
SATA

* 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4)

* 2 x Ultra M.2 (PCIe Gen3 x4 & SATA3)

RAID

* Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Connector Information
Internal Connectors

- 1 x SPI TPM Header

- 1 x Power LED and Speaker Header

- 2 x RGB LED Headers*

- 2 x Addressable LED Headers**

- 1 x CPU Fan Connector (4-pin)***

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)

- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

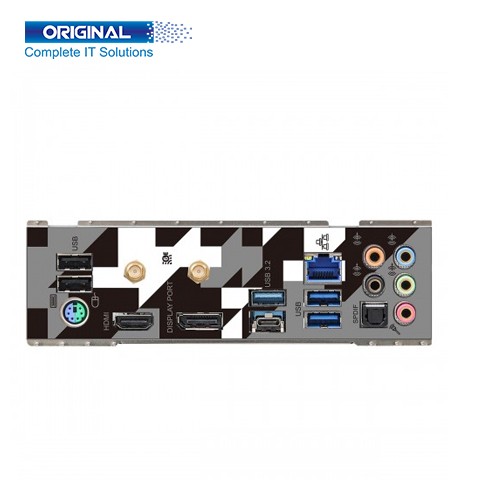

Port Information
USB Port

- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)

- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)

- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)

- 2 x USB 2.0 Ports (Supports ESD Protection)

HDMI Port 1 x HDMI Port
LAN Port

* 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

* Dragon RTL8125BG

* Supports Dragon 2.5G LAN Software

* Smart Auto Adjust Bandwidth Control

* Visual User Friendly UI

* Visual Network Usage Statistics

* Optimized Default Setting for Game, Browser, and Streaming Modes

* User Customized Priority Control

* Supports Wake-On-LAN

* Supports Lightning/ESD Protection

* Supports Energy Efficient Ethernet 802.3az

* Supports PXE

Audio Port

* 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

* Supports Surge Protection

* Gold Audio Jacks

* 15μ Gold Audio Connector

* Nahimic Audio

Display Port 1 x DisplayPort 1.4
Other Information
Special Feature

Wireless LAN:

- Intel 802.11ax Wi-Fi 6E Module

- Supports IEEE 802.11a/b/g/n/ax

- Supports Dual-Band 2x2 160MHz with extended 6GHz band support

- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology

- Supports Bluetooth 5.2 + High speed class II

- Supports MU-MIMO

Operating Systems
Supported OS - Microsoft® Windows® 10 64-bit / 11 64-bit
Warranty
Warranty 03 years warranty

Descripton:


ASRock Z590 Steel Legend Wi-Fi 6E 10th and 11th Gen ATX Motherboard


This ASRock Z590 Steel Legend Wi-Fi 6E 10th and 11th Gen ATX Motherboard. This series of motherboards are expertly engineered to unleash the full potential of 10th Generation Intel microprocessors. Boasting a robust power design, comprehensive cooling solutions, and intelligent tuning options, Z590 mtx-videos daily users and firmware features.


ASRock Z590 Steel Legend Wi-Fi 6E 10th and 11th Gen ATX Motherboard Brand ASRock, Supported Processor Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200),Digi Power design,14 Power Phase design, Supports Intel® Turbo Boost Max 3.0 Technology, Supports Intel® K-Series unlocked CPUs, Chipset Intel Z590, Socket LGA1200 Bios 128Mb AMI UEFI Legal BIOS with multilingual GUI support, ACPI 6.0 Compliant wake up events, SMBIOS 2.7 Support, CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VPPM, VCCIN AUX, VCCST Voltage Multi-adjustment, Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm,2oz Copper PCB, Memory Types DDR4,Channel Dual Channel, Slot 4 x DDR4 DIMM Slots, Supported Bus Speed 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC),10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC),Supports ECC UDIMM memory modules (operate in non-ECC mode),Supports Intel Extreme Memory Profile (XMP) 2.0,15μ Gold Contact in DIMM Slots, Maximum Memory Max. capacity of system memory: 128GB, Graphics 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics, Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1, Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc, Dual graphics output: Support HDMI and DisplayPort 1.4 ports by independent display controllers, Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz,Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz,Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required),Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports, PCI 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 3 x PCIe 3.0 x1,Graphics Output Options: HDMI, DisplayPort,7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4),2 x Ultra M.2 (PCIe Gen3 x4 & SATA3),SATA 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4),2 x Ultra M.2 (PCIe Gen3 x4 & SATA3),RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices, Internal Connectors 1 x SPI TPM Header,1 x Power LED and Speaker Header 2 x RGB LED Headers*2 x Addressable LED Headers**1 x CPU Fan Connector (4-pin)***1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****1 x 24 pin ATX Power Connector (Hi-Density Power Connector)2 x 8 pin 12V Power Connectors (Hi-Density Power Connector), 1 x Front Panel Audio Connector (15μ Gold Audio Connector),1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card),2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection),2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (AS Media ASM1074 hub) (Supports ESD Protection),1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection),USB Port 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection),1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Re Driver) (Supports ESD Protection),2 x USB 3.2 Gen1 Ports (Supports ESD Protection),2 x USB 2.0 Ports (Supports ESD Protection),HDMI Port 1 x HDMI Port, LAN Port 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG,Supports Dragon 2.5G LAN Software, Smart Auto Adjust Bandwidth Control, Visual User Friendly UI, Visual Network Usage Statistics, Optimized Default Setting for Game, Browser, and Streaming Modes, User Customized Priority Control, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az,Supports PXE,Audio Port 7.1 CH HD Audio (Realtek ALC897 Audio Codec),Supports Surge Protection, Gold Audio Jacks,15μ Gold Audio Connector, Nahimic Audio, Display Port 1 x DisplayPort 1.4,Special Feature Wireless LAN: Intel 802.11ax Wi-Fi 6E Module, Supports IEEE 802.11a/b/g/n/ax, Supports Dual-Band 2x2 160MHz with extended 6GHz band support,2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.2 + High speed class II, Supports MU-MIMO. The Supported OS Microsoft® Windows® 10 64-bit / 11 64-bit.ASRock Z590 Steel Legend Wi-Fi 6E 10th and 11th Gen ATX Motherboard 03 years warranty.
