ASRock Z590 Extreme 10th and 11th Gen ATX Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Asrock
Product Code :           Z590 Extreme

Short Details:

  • • Model: ASRock Z590 Extreme
  • • Chipset: Intel® Z590
  • • Socket: LGA1200
  • • Form Factor: ATX

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

ASRock Z590 Extreme

Brand ASRock
Supported Processor Supports 10th & 11 Gen Intel® Core™ Processors
Chipset Intel® Z590
Socket LGA1200
Bios

- 128Mb AMI UEFI Legal BIOS with multilingual GUI support

- ACPI 6.0 Compliant wake up events

- SMBIOS 2.7 Support

- CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIO 1 2, VPPM, VCCIN AUX, VCCST Voltage Multi-adjustment

Form Factor

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

- 2oz Copper PCB

Memory Information
Memory Types

DDR4

Channel Dual Channel
Slot 4 x DDR4 DIMM Slots
Maximum Memory 128GB
Graphics Information
Graphics

- 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics

- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers

- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel® Core™ Processors

- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel® Core™ Processors

- Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)

- Supports HDCP 2.2 with DisplayPort and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel® Core™ Processors)

Expansion Slots
PCI

11th Gen Intel® Core™ Processors

- 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))*

10th Gen Intel® Core™ Processors

- 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))*

- 3 x PCI Express 3.0 x1 Slots

- Supports AMD Quad CrossFireX™ and CrossFireX™

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)

- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Storage Information
M.2

* 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with

* 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

* 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

SATA 6 x SATA3 6.0 Gb/s Connectors
RAID

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Connector Information
Internal Connectors

- 1 x SPI TPM Header

- 1 x Power LED and Speaker Header

- 2 x RGB LED Headers*

- 2 x Addressable LED Headers

- 1 x CPU Fan Connector (4-pin)

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)

- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)

- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

- 1 x Power Button with LED

- 1 x Reset Button with LED

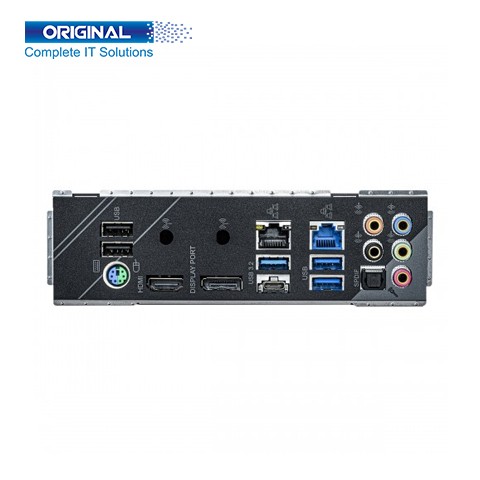

Port Information
PS/2 Port

- 1 x PS/2 Mouse/Keyboard Port

USB Port

- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)

- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)

- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)

- 2 x USB 2.0 Ports (Supports ESD Protection)

HDMI Port 1 x HDMI Port
LAN Port

1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)

- Supports Dragon 2.5G LAN Software

- Smart Auto Adjust Bandwidth Control

- Visual User Friendly UI

- Visual Network Usage Statistics

- Optimized Default Setting for Game, Browser, and Streaming Modes

- User Customized Priority Control

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

Audio Port

- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

- Premium Blu-ray Audio support

- Supports Surge Protection

- Pure Power-In

- Direct Drive Technology

- PCB Isolate Shielding

- Impedance Sensing on Rear Out port

- Individual PCB Layers for R/L Audio Channel

- Gold Audio Jacks

- 15μ Gold Audio Connector

- Nahimic Audio

Antenna 2 x Antenna Mounting Points
Display Port 1 x DisplayPort 1.4
Optical 1 x Optical SPDIF Out Port
Operating Systems
Supported OS

Microsoft® Windows® 10 64-bit / 11 64-bit

Warranty
Warranty

03 Years Warranty

Descripton:


ASRock Z590 Extreme ATX 10th and 11th Gen Motherboard


ASRock Z590 Extreme 10th and 11th Gen ATX Motherboard. It's delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake's performance in all its atx glory. It ensures maximum Turbo Boost and overclocking performance of Intel's new generation CPU.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


ASRock Z590 Extreme 10th and 11th Gen ATX Motherboard. ASRock Motherboard Model Z590 Extreme, Motherboard Brand ASRock, This Motherboard Supported Processor 10th & 11 Gen Intel® Core™, ASRock Motherboard Chipset Intel® Z590, Z590 Extreme Motherboard Socket LGA 1200, ASRock Motherboard Form Factor ATX, The ASRock Z590 Extreme Memory DDR4 And Dual Channel, Motherboard Memory Slots 4 x DDR4 DIMM, Supported Memory Up to 128 GB, ASRock Z590 Extreme Expansion Slots 11th Gen Intel® Core™ Processors 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3)), 10th Gen Intel® Core™ Processors 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3)) 3 x PCI Express 3.0 x1 Slots. You can get ASRock Z590 Extreme 10th and 11th Gen ATX Motherboard at the best price in BD. ASRock Z590 Extreme 10th and 11th Gen Motherboard Supported Storage M.2, SATA and Rapid Storage Technology, Z590 Extreme Supported Port 1 x PS/2 Mouse/Keyboard Port, 1 x USB 3.2 Gen2 Type-A Port, 1 x USB 3.2 Gen2 Type-C Port, 2 x USB 3.2 Gen1 Ports, 2 x USB 2.0 Ports, 1 x HDMI Port, LAN Port, 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG), 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V), 7.1 CH HD Audio with Content Protection, 2 x Antenna Mounting Points, 1 x DisplayPort 1.4, 1 x Optical SPDIF Out Port, ASRock Motherboard Supported Operating Systems Microsoft® Windows® 10 64-bit / 11 64-bit, ASRock Z590 Extreme Motherboard 03 Years Warranty.
