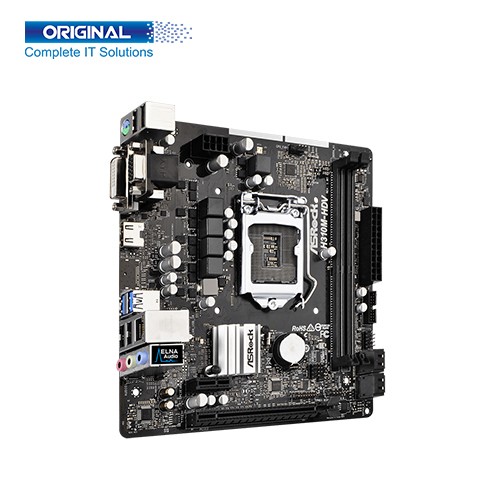

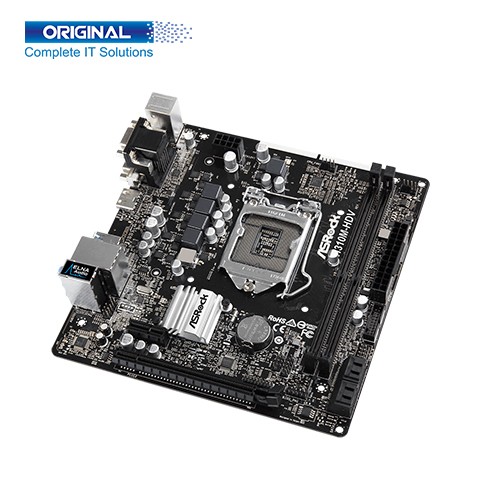

Asrock H310M-HDV DDR4 9th and 8th Gen Micro Atx Motherboard

Price :           To be announced
Status :           Up Comming
Brand :           Asrock
Product Code :           H310M-HDV

Short Details:

  • • Model: H310M-HDV
  • • Chipset: Intel H310
  • • Socket: 1151
  • • Form Factor: Micro ATX

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model H310M-HDV
Brand Asrock
Supported Processor

Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)

Supports CPU up to 95W

5 Power Phase design

Supports Intel® Turbo Boost 2.0 Technology

Chipset Intel H310
Socket 1151
BIOS

128Mb AMI UEFI Legal BIOS with multilingual GUI support

ACPI 6.0 Compliant wake up events

SMBIOS 2.7 Support

DRAM, PCH 1.05V Voltage Multi-adjustment

Form Factor Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm
Memory Information
Memory Type DDR4
Channel Dual Channel
Slot 2 x DDR4 DIMM
Supported Bus Speed Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
Maximum Memory Up to 64 GB
Graphics Information
Graphics

Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics

- DirectX 12

- HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1

- Three graphics output options: D-Sub, DVI-D and HDMI**

- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz

- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)

- Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports

- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

Expansion Slots
PCI

1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*

1 x PCI Express 2.0 x1 Slot

Storage Information
SATA 4 x SATA3 6.0 Gb/s Connectors, support NCQ
Connector Information
Internal Connectors

1 x TPM Header

1 x Chassis Intrusion and Speaker Header

1 x CPU Fan Connector (4-pin)

1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**

1 x 24 pin ATX Power Connector

1 x 8 pin 12V Power Connector

1 x Front Panel Audio Connector

1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)

1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

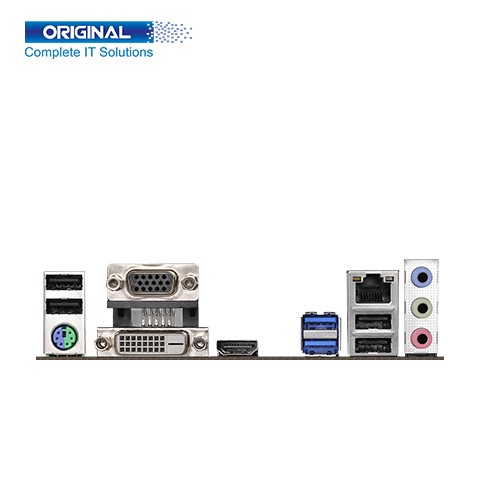

Port Information
PS/2 Port 1 x PS/2 Mouse/Keyboard Port
USB Port

4 x USB 2.0 Ports (Supports ESD Protection)

2 x USB 3.1 Gen1 Ports (Supports ESD

HDMI Port 1 x HDMI Port
DVI-D 1 x DVI-D Port
D-Sub 1 x D-Sub Port
LAN

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

PCIE x1 Gigabit LAN 10/100/1000 Mb/s

Audio Jack HD Audio Jacks: Line in / Front Speaker / Microphone
Operating System
Supported OS Microsoft® Windows® 10 64-bit / 11 64-bit
Warranty
Warranty 03 Years

Descripton:


Asrock H310M-HDV DDR4 9th and 8th Gen Micro Atx Motherboard
