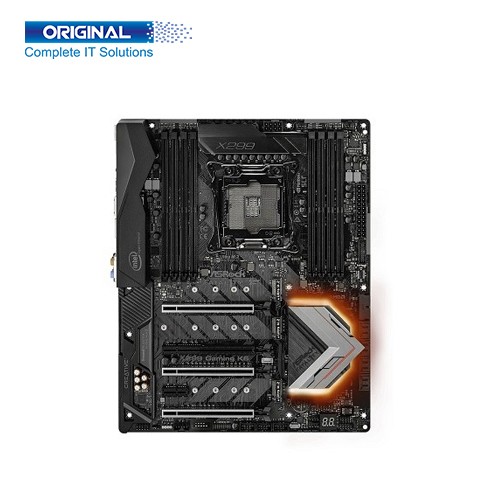

ASRock Fatal1ty X299 GAMING K6 Intel ATX Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Asrock
Product Code :           Fatal1ty X299 GAMING K6

Short Details:

  • • Model: ASRock Fatal1ty X299 GAMING K6
  • • Chipset: Intel® X299
  • • Socket: LGA 2066
  • • Form Factor: ATX

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

ASRock Fatal1ty X299 GAMING K6

Brand Asrock
Supported Processor Supports Intel® Core™ X-Series Processor
Chipset Intel® X299
Socket LGA 2066
Bios

- 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)

- Supports Secure Backup UEFI Technology

- ACPI 6.1 Compliant wake up events

- SMBIOS 3.0 Support

- CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCST, VCCSA, VCCSFR, VCCPLL, CLK VDD, PEGRCOMP Voltage Multi-adjustment

Form Factor

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

- 8 Layer PCB

Memory Information
Memory Types

DDR4

Slot 8 x DDR4 DIMM Slots
Supported Bus Speed Supports DDR4 4400+(OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
Maximum Memory 256GB
Expansion Slots
PCI

- 4 x PCI Express 3.0 x16 Slots*

- 1 x PCI Express 3.0 x1 Slot**

- Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™***

- Supports NVIDIA® Quad SLI™, 3-Way SLI™ and SLI™***

- 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)

Storage Information
M.2

1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

2 x Ultra M.2 Sockets (M2_1 and M2_3), support M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

SATA 8 x SATA3 6.0 Gb/s Connectors
RAID support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug
Connector Information
Internal Connectors

- 1 x Virtual RAID On CPU Header

- 1 x TPM Header

- 1 x Power LED and Speaker Header

- 2 x RGB LED Headers*

- 1 x CPU Fan Connector (4-pin)**

- 1 x CPU Optional/Water Pump Fan Connector (4-pin)***

- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)

- 1 x Chassis Optional/Water Pump Fan Connector (4-pin)****

- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

- 1 x Thunderbolt™ AIC Connector (5-pin)*****

- 3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Supports ESD Protection)

- 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 Hub) (Supports ESD Protection)

- 1 x Dr. Debug with LED

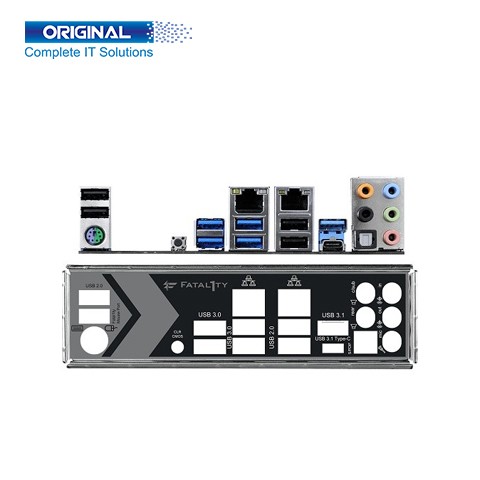

Port Information
PS/2 Port

1 x PS/2 Mouse/Keyboard Port

USB Port

- 4 x USB 2.0 Ports (Supports ESD Protection)*

- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s)

- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s)

- 4 x USB 3.1 Gen1 Ports (Supports ESD

LAN Port

- Gigabit LAN 10/100/1000 Mb/s

- 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Dual LAN with Teaming*

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

Audio Port

- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

- Premium Blu-ray Audio support

- Supports Surge Protection

- Nichicon Fine Gold Series Audio Caps

- 120dB SNR DAC with Differential Amplifier

- TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)

- Pure Power-In

- Direct Drive Technology

- PCB Isolate Shielding

- Impedance Sensing on Rear Out port

- Individual PCB Layers for R/L Audio Channel

- 15μ Gold Audio Connector

- Supports Creative Sound Blaster™ Cinema 3

SPDIF Out Port 1 x Optical SPDIF Out Port
Operating Systems
Supported OS

Microsoft® Windows® 10 64-bit

Warranty
Warranty

03 Years Warranty

Descripton:


ASRock Fatal1ty X299 GAMING K6 Intel ATX Motherboard


ASRock Fatal1ty X299 GAMING K6 Intel ATX Motherboard. Its delivery and dominant thermal design, are glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake's performance in all its atx glory. It ensures maximum Turbo Boost and overclocking performance of Intel's new generation CPU.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


ASRock Fatal1ty X299 GAMING K6 Intel ATX Motherboard. ASRock Motherboard Model Fatal1ty X299 GAMING K6, Motherboard Brand ASRock, ASRock  K6 Intel ATX Motherboard Supported Processor Intel® Core™ X-Series, ASRock Motherboard Chipset Intel® X299, ASRock Fatal1ty X299 GAMING K6 Socket LGA 2066, ASRock Motherboard ATX Form Factor, Motherboard Memory Types DDR4, Motherboard Memory 8 x DDR4 DIMM Slots. You can get ASRock Fatal1ty X299 GAMING K6 Intel ATX Motherboard at the best price in BD. ASRock Motherboard Supported Bus Speed Supports DDR4 2666 / 2400 / 2133 MHz, ASRock Fatal1ty X299 GAMING K6 Motherboard Maximum Memory 256 GB, ASRock Fatal1ty X299 GAMING Motherboard Expansion 4 x PCI Express 3.0 x16 Slots, 1 x PCI Express 3.0 x1 Slot, ASRock Fatal1ty X299 GAMING K6 Motherboard 1 x PS/2 Mouse/Keyboard Port, 4 x USB 2.0 Ports, 1 x USB 3.1 Gen2 Type-A Port, 1 x USB 3.1 Gen2 Type-C Port, 4 x USB 3.1 Gen1 Ports, Gigabit LAN 10/100/1000 Mb/s, 7.1 CH HD Audio with Content Protection, 1 x Optical SPDIF Out Port, ASRock Motherboard Supported Windows 10 64-bit, ASRock Fatal1ty X299 GAMING K6 Motherboard 03 Years Warranty.
