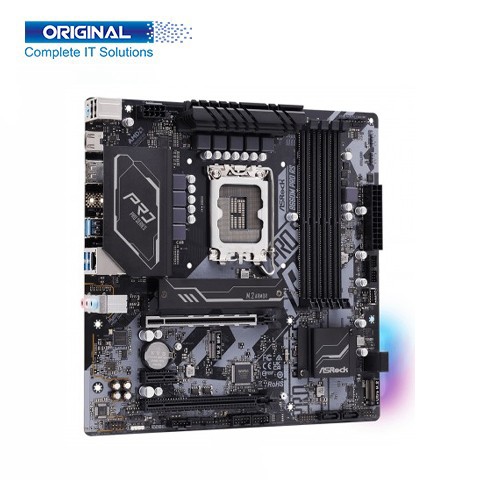

ASRock B660M Pro RS 12th Gen Micro ATX Motherboard

Special Price :           ৳16,200
Regular Price(EMI) :           ৳16,800
Status :           In Stock
Brand :           Asrock
Product Code :           B660M Pro RS

Short Details:

  • • Model: ASRock B660M Pro RS
  • • Socket: LGA1700
  • • Memory Types: DDR4
  • • Maximum Memory: 128GB

See More Details

৳16,200

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model ASRock B660M Pro RS
Brand ASRock
Supported Processor Supports 13th Gen & 12th Gen Intel Core Processors
Chipset Intel B660
Socket LGA1700
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support

- ACPI 6.0 Compliant wake up events

- SMBIOS 2.7 Support

- CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment

Form Factor

- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

- Solid Capacitor design

Memory Information
Memory Types DDR4
Channel Dual Channel
Slot 4 x DDR4 DIMM Slots
Supported Bus Speed

- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*

- Supports ECC UDIMM memory modules (operate in non-ECC mode)

Maximum Memory 128GB
Graphics Information
Graphics

- Intel® Xe Graphics Architecture (Gen 12)

- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers

- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz

- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

Expansion Slots
PCI

CPU:

- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

- 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*

- 1 x PCIe 3.0 x1 Slot (PCIE2)*

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)

- Supports AMD CrossFire™


Storage Information
M.2

CPU:

- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3 x4 (32 Gb/s) mode*

SATA - 4 x SATA3 6.0 Gb/s Connectors
RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Connector Information
Internal Connector

- 1 x SPI TPM Header

- 1 x Chassis Intrusion and Speaker Header

- 1 x RGB LED Header

* Supports in total up to 12V/3A, 36W LED Strip

- 3 x Addressable LED Headers

* Support in total up to 5V/3A, 15W LED Strip

- 1 x CPU Fan Connector (4-pin)

* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)

* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

* CPU_FAN2/WP, CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

- 1 x 24 pin ATX Power Connector

- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector

- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

- 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

Port Information
PS/2 Port - 1 x PS/2 Mouse/Keyboard Port
USB Port

- 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)

- 2 x USB 2.0 Ports (Supports ESD Protection)

HDMI Port - 1 x HDMI Port
Display Port - 1 x DisplayPort 1.4
LAN Port - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Audio Jack - HD Audio Jacks: Line in / Front Speaker / Microphone
Antenna Port - 3 x Antenna Mounting Points
Other Information
Software and UEFI

Software

- ASRock Motherboard Utility (A-Tuning)

- ASRock Polychrome SYNC

- ASRock XFast LAN

UEFI

- ASRock EZ Mode

- ASRock Full HD UEFI

- ASRock My Favorites in UEFI

- ASRock Instant Flash

- ASRock Internet Flash

- ASRock Easy RAID Installer

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)
Operating System
Supported OS - Microsoft Windows 10 64-bit / 11 64-bit
Warranty
Warranty 03 Years Warranty

Descripton:


ASRock B660M Pro RS 12th Gen Micro ATX Motherboard


ASRock B660M Pro RS 12th Gen Micro ATX Motherboard. supports 12th Gen Intel Core Processors (LGA1700). It features an 8 Phase Power Design and it supports DDR4 4800MHz (OC). It supports the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high-end graphic cards.


ASRock B660M Pro RS 12th Gen Micro ATX Motherboard. The Model is ASRock B660M Pro RS, Brand ASRock, Supported Processor Supports 13th Gen & 12th Gen Intel Core Processors, Chipset Intel B660, Socket LGA1700, BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support, - ACPI 6.0 Compliant wake-up events, - SMBIOS 2.7 Support, - CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment, Form Factor - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm, - Solid Capacitor design. It is Memory Types DDR4, Channel Dual Channel, Slot 4 x DDR4 DIMM Slots, Supported Bus Speed - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC), - Supports ECC UDIMM memory modules (operate in non-ECC mode), Maximum Memory 128GB, Graphics - Intel® Xe Graphics Architecture (Gen 12), - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers, - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz, - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports. PCI CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode, Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode, - 1 x PCIe 3.0 x1 Slot (PCIE2), - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT), - Supports AMD CrossFire. M.2 CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode, Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3 x4 (32 Gb/s) mode, SATA - 4 x SATA3 6.0 Gb/s Connectors, RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices. Internal Connector is- 1 x SPI TPM Header, - 1 x Chassis Intrusion and Speaker Header, - 1 x RGB LED Header, * Supports in total up to 12V/3A, 36W LED Strip, - 3 x Addressable LED Headers, * Support in total up to 5V/3A, 15W LED Strip, - 1 x CPU Fan Connector (4-pin), * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power, - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power, - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power, * CPU_FAN2/WP, CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.- 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection), Software and UEFI Software - ASRock Motherboard Utility (A-Tuning), - ASRock Polychrome SYNC, - ASRock XFast LAN, UEFI - ASRock EZ Mode, - ASRock Full HD UEFI, - ASRock My Favorites in UEFI, - ASRock Instant Flash, - ASRock Internet Flash, - ASRock Easy RAID Installer. The ASRock B660M Pro RS 12th Gen Micro ATX Motherboard has a 03 Years Warranty.
