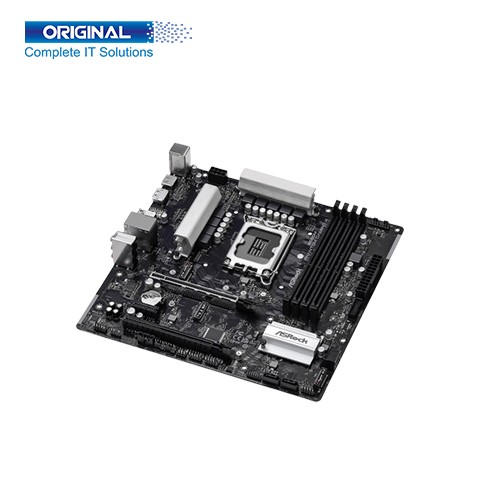

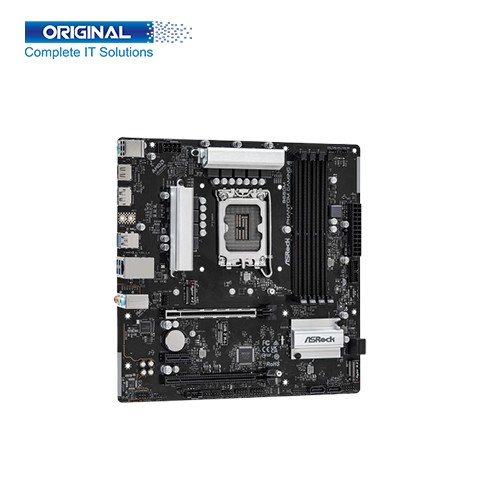

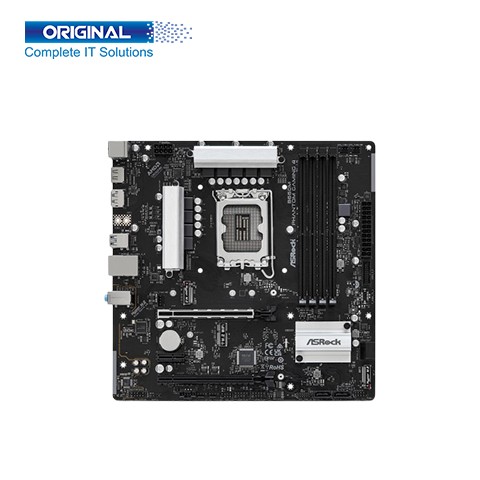

ASRock B660M Phantom Gaming 4 12th Gen Micro ATX Motherboard

Description:

ASRock B660M Phantom Gaming 4 12th Gen Micro ATX Motherboard

ASRock B660M Phantom Gaming 4 12th Gen Micro ATX Motherboard delivery and dominant thermal design, are glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake's performance in all its atx glory. ASRock ensures maximum Turbo Boost and overclocking performance of Intel new generation CPU.

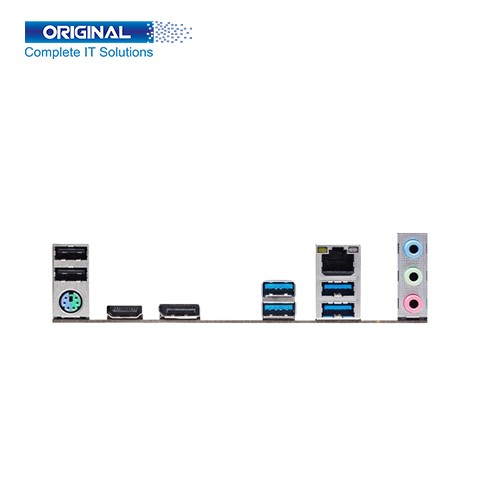

ASRock B660M Phantom Gaming 4 12th Gen Micro ATX Motherboard Brand is ASRock, Supported Processor 12th Gen Intel Core Processors, Chipset Intel B660, Socket LGA1700, Bios 128Mb AMI UEFI Legal BIOS with multilingual GUI support, ACPI 6.0 Compliant wake up events, SMBIOS 2.7 Support, CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment. This motherboard form Factor Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm, Solid Capacitor design. ASRock B660M Phantom Gaming 4 Memory Types DDR4, Channel Dual Channel, Slot 4 x DDR4 DIMM Slots, Supported Bus Speed Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC), Supports ECC UDIMM memory modules (operate in non-ECC mode), Maximum Memory 128GB, Graphics Intel® Xe Graphics Architecture (Gen 12), Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers. ASRock motherboard Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, Supports DisplayPort 1.4 with DSC (compressed) and the motherboard max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz. Also Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports. ASRock Micro ATX Motherboard PCI 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode* 1 x PCIe 3.0 x1 Slot (PCIE2)* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT),M.2 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT), SATA 4 x SATA3 6.0 Gb/s Connectors, RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Internal Connectors 1 x SPI TPM Header, 1 x Chassis Intrusion and Speaker Header, 1 x CPU Fan Connector (4-pin)*1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) and  1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector (Hi-Density Power Connector), 1 x Front Panel Audio Connector, 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card), 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection). ASRock B660M Phantom Gaming 4 12th Gen Motherboard PS/2 Port 1 x PS/2 Mouse/Keyboard Port USB Port 4 x USB 3.2 Gen1 Ports (AS Media ASM1074 hub) (Supports ESD Protection), 2 x USB 2.0 Ports (Supports ESD Protection), HDMI Port 1 x HDMI Port, LAN Port Gigabit LAN 10/100/1000 Mb/s, Giga PHY Intel I219V, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports UEFI PXE, Audio Port HD Audio Jacks: Line in / Front Speaker / Microphone. Also this motherboard  Special Feature ASRock Super Alloy, Premium Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology, ASRock Steel Slot, ASRock Hyper M.2 (PCIe Gen4x4), ASRock POST Status Checker (PSC), ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update & APP Shop and Supported OS Microsoft Windows 10 64-bit / 11 64-bit. ASRock B660M Phantom Gaming 4 12th Gen Micro ATX Motherboard 3 years Warranty.
