| Special Price | : | ৳11,500 |
| Regular Price(EMI) | : | ৳12,700 |
| Status | : | In Stock |
| Brand | : | Asrock |
| Product Code | : | B550M-HDV |
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।
| General Information | ||
| Model | ASRock B550M-HDV |
|
| Brand | ASRock | |
| Supported Processor | Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors | |
| Chipset | AMD B550 | |
| Socket | AMD AM4 Socket | |
| Bios | - 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment |
|
| Form Factor | Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm | |
| Memory Information | ||
| Memory Types | DDR4 |
|
| Channel | Dual Channel | |
| Slot | 2 x DDR4 DIMM Slots | |
| Supported Bus Speed | AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory | |
| Maximum Memory | 64GB | |
| Graphics Information | ||
| Graphics | - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports*** - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port - Supports Microsoft® PlayReady |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode) 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode) 1 x PCI Express 3.0 x1 Slot |
|
| Storage Information | ||
| M.2 | 1 x Hyper M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso) |
|
| SATA | 4 x SATA3 6.0 Gb/s Connectors | |
| RAID | Support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug | |
| Connector Information | ||
| Internal Connectors | - 1 x SPI TPM Header - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|
| Port Information | ||
| PS/2 Port | 1 x PS/2 Mouse/Keyboard Port |
|
| USB Port | 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
|
| HDMI Port | 1 x HDMI Port | |
| DVI-D Port | 1 x DVI-D Port | |
| D-SUB Port | 1 x D-Sub Port | |
| LAN Port | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
|
| Audio Port | 7.1 CH HD Audio (Realtek ALC887 Audio Codec) | |
| Operating Systems | ||
| Supported OS | Microsoft® Windows® 10 64-bit / 11 64-bit |
|
| Warranty | ||
| Warranty | 03 Years Warranty |
|

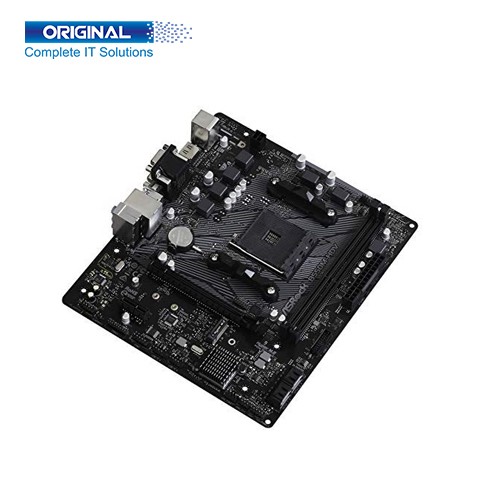

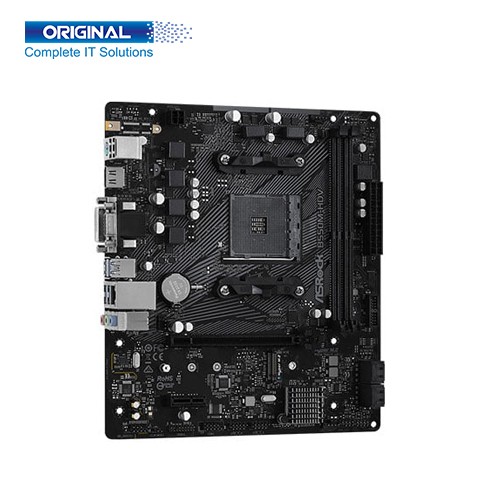

ASRock B550M-HDV DDR4 3rd Gen AMD AM4 Socket Motherboard. Its delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake's performance in all its atx glory. It ensures maximum Turbo Boost and overclocking performance of Intel's new generation CPU.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
ASRock B550M-HDV DDR4 3rd Gen AMD AM4 Socket Motherboard. ASRock Motherboard Model B550M-HDV, Motherboard Brand ASRock, This Motherboard Supported Processor AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop, ASRock Motherboard Chipset AMD B550, ASRock B550M-HDV Socket AMD AM4 Socket, ASRock Motherboard Micro ATX Form Factor, Motherboard Memory Types DDR4 and Dual Channel, Motherboard Memory 2 x DDR4 DIMM Slots. You can get ASRock B550M-HDV DDR4 3rd Gen AMD AM4 Socket Motherboard at the best price in BD. ASRock B550M-HDV DDR4 Motherboard Supported Bus Speed 3200/2933/2667/2400/2133 MHz, ASRock B550M-HDV Motherboard Maximum Memory 64GB, ASRock Motherboard Expansion Slots 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode), 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode), 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode), 1 x PCI Express 3.0 x1 Slot, Motherboard Storage 1 x Hyper M.2 Socket. ASRock 3rd Gen AMD AM4 Socket Motherboard supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso), 4 x SATA3 6.0 Gb/s Connectors, Support RAID (RAID 0, RAID 1 and RAID 10), ASRock B550M-HDV Motherboard 1 x PS/2 Mouse/Keyboard Port, 2 x USB 2.0 Ports (Supports ESD Protection), 4 x USB 3.2 Gen1 Ports (Supports ESD Protection), 1 x HDMI Port, 1 x DVI-D Port, 1 x D-Sub Port, PCIE x1 Gigabit LAN 10/100/1000 Mb/s, 7.1 CH HD Audio, ASRock Motherboard Supported Windows 10 64-bit / 11 64-bit, ASRock B550M-HDV Motherboard 03 Years Warranty.
