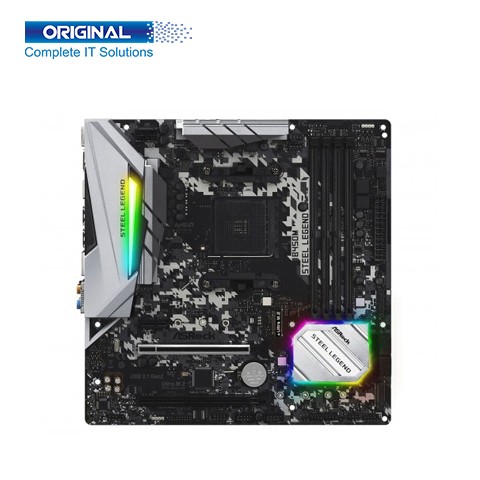

ASRock B450M Steel Legend DDR4 2nd Gen AMD Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Asrock
Product Code :           B450M Steel Legend

Short Details:

  • • Model: ASRock B450M Steel Legend
  • • Chipset: AMD Promontory B450
  • • Socket: AMD AM4 Socket
  • • Form Factor: Micro ATX

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

ASRock B450M Steel Legend

Brand ASRock
Supported Processor Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
Chipset AMD Promontory B450
Socket AMD AM4 Socket
Bios

- 128Mb AMI UEFI Legal BIOS with multilingual GUI support

- Supports "Plug and Play"

- ACPI 5.1 compliance wake up events

- Supports jumperfree

- SMBIOS 2.3 support

- DRAM Voltage multi-adjustment

Form Factor Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Memory Information
Memory Types

DDR4

Channel Dual Channel
Slot 4 x DDR4 DIMM Slots
Supported Bus Speed AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
Maximum Memory 128GB
Graphics Information
Graphics

- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*

- DirectX 12, Pixel Shader 5.0

- Shared memory default 2GB. Max Shared memory supports up to 16GB.**

- Dual graphics output: Support HDMI and DisplayPort 1.2 ports by independent display controllers

- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz

- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)

- Supports HDCP 1.4 with HDMI 1.4 and DisplayPort 1.2 Ports

- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports

Expansion Slots
PCI

1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)

1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)

1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) (If you use Athlon 2xxGE series APU, PCIE2 slot will run at x4 mode.)

1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)

1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)

1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)

1 x PCI Express 2.0 x1 Slot

Storage Information
M.2

1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU and Raven Ridge 2)

1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module

SATA 4 x SATA3 6.0 Gb/s Connectors
RAID Support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
Connector Information
Internal Connectors

- 1 x COM Port Header

- 1 x TPM Header

- 1 x Chassis Intrusion Header

- 1 x Power LED and Speaker Header

- 1 x RGB LED Header*

- 1 x Addressable LED Header**

- 1 x AMD Fan LED Header***

- 1 x CPU Fan Connector (4-pin)****

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****

- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******

- 1 x 24 pin ATX Power Connector

- 1 x 8 pin 12V Power Connector

- 1 x Front Panel Audio Connector

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

Port Information
PS/2 Port

1 x PS/2 Mouse/Keyboard Port

USB Port

- 2 x USB 2.0 Ports (Supports ESD Protection)

- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s)

- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s)

- 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)

HDMI Port 1 x HDMI Port
Display Port 1 x DisplayPort 1.2
SPDIF Out Port 1 x Optical SPDIF Out Port
LAN Port

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111H

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

Audio Port

- 7.1 CH HD Audio with Content Protection (Realtek ALC892/897 Audio Codec)

- Supports Surge Protection

- PCB Isolate Shielding

- Individual PCB Layers for R/L Audio Channel

- Gold Audio Jacks

Operating Systems
Supported OS

Microsoft® Windows® 10 64-bit / 11 64-bit

Warranty
Warranty

03 Years Warranty

Descripton:


ASRock B450M Steel Legend DDR4 2nd Gen AMD Motherboard


ASRock B450M Steel Legend DDR4 2nd Gen AMD Motherboard. Its delivery and dominant thermal design, are glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake's performance in all its atx glory. It ensures maximum Turbo Boost and overclocking performance of Intel's new generation CPU.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


ASRock B450M Steel Legend DDR4 2nd Gen AMD Motherboard. ASRock Motherboard Model B450M Steel Legend, Motherboard Brand ASRock, This Motherboard Supported Processor MD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop, ASRock Motherboard Chipset Promontory B450, ASRock B450M Steel Legend Socket AMD AM4 Socket, ASRock Motherboard ATX Form Factor, Motherboard Memory Types DDR4 and Dual Channel, Motherboard Memory 4 x DDR4 DIMM Slots, ASRock Motherboard Supported Bus Speed 3200/2933/2667/2400/2133 MHz, ASRock B450M Steel Legend Motherboard Maximum Memory 128 GB, ASRock Motherboard Expansion 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode, x8 mode, x4 mode), 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode), 1 x PCI Express 2.0 x1 Slot, Motherboard Storage 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU and Raven Ridge 2), 4 x SATA3 6.0 Gb/s Connectors, Support RAID (RAID 0, RAID 1 and RAID 10).You can get ASRock B450M Steel Legend DDR4 2nd Gen AMD Motherboard at the best price in BD. ASRock B450M Steel Legend Motherboard 1 x PS/2 Mouse/Keyboard Port, 2 x USB 2.0 Ports, 1 x USB 3.1 Gen2 Type-A Port, 1 x USB 3.1 Gen2 Type-C Port, 4 x USB 3.1 Gen1 Ports, 1 x HDMI Port, 1 x DisplayPort 1.2, 1 x Optical SPDIF Out Port, PCI-E x1 Gigabit LAN 10/100/1000 Mb/s, 7.1 CH HD Audio with Content Protection, ASRock B450M Steel Legend Motherboard Supported Windows 10 64-bit / 11 64-bit, ASRock B450M Steel Legend Motherboard 03 Years Warranty.
