ASRock A520M-HDV DDR4 3rd Gen AMD Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Asrock
Product Code :           A520M-HDV

Short Details:

  • • Model: ASRock A520M-HDV
  • • Chipset: AMD A520
  • • Socket: AMD AM4 Socket
  • • Form Factor: Micro ATX

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

ASRock A520M-HDV

Brand ASRock
Supported Processor Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors
Chipset AMD A520
Socket AMD AM4 Socket
Bios

- 128Mb AMI UEFI Legal BIOS with GUI support

- Supports "Plug and Play"

- ACPI 5.1 compliance wake up events

- Supports jumperfree

- SMBIOS 2.3 support

- CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment

Form Factor

- Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm

- Solid Capacitor design

Memory Information
Memory Types

DDR4

Channel Dual Channel
Slot 2 x DDR4 DIMM Slots
Supported Bus Speed AMD Ryzen DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133
Maximum Memory 64GB
Graphics Information
Graphics

- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*

- DirectX 12, Pixel Shader 5.0

- Shared memory default 2GB. Max Shared memory supports up to 16GB.**

- Three graphics output options: D-Sub, DVI-D and HDMI

- Supports Triple Monitor

- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)

- Supports HDR (High Dynamic Range) with HDMI 2.1

- Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports

- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port

- Supports Microsoft® PlayReady

Expansion Slots
PCI

- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)

- 1 x PCI Express 3.0 x1 Slot

Storage Information
M.2

Support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug

SATA 4 x SATA3 6.0 Gb/s Connectors
RAID 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Connector Information
Internal Connectors

- 1 x SPI TPM Header

- 1 x COM Port Header

- 1 x Chassis Intrusion and Speaker Header

- 1 x CPU Fan Connector (4-pin)*

- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**

- 1 x 24 pin ATX Power Connector

- 1 x 4 pin 12V Power Connector

- 1 x Front Panel Audio Connector

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

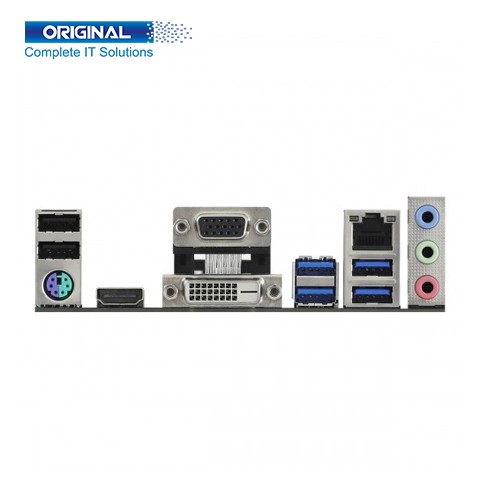

Port Information
PS/2 Port

1 x PS/2 Mouse/Keyboard Port

USB Port

- 2 x USB 2.0 Ports (Supports ESD Protection)

- 4 x USB 3.2 Gen1 Ports (Supports ESD

HDMI Port 1 x HDMI Port
DVI-D Port 1 x DVI-D Port
D-SUB Port 1 x D-Sub Port
LAN Port

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111H

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

Audio Port

- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)

- Supports Surge Protection

Operating System
Supported OS

Microsoft® Windows® 10 64-bit / 11 64-bit

Warranty
Warranty

03 Years Warranty

Descripton:


ASRock A520M-HDV DDR4 3rd Gen AMD Motherboard



ASRock A520M-HDV DDR4 3rd Gen AMD Motherboard. Its delivery and dominant thermal design, are glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake's performance in all its atx glory. It ensures maximum Turbo Boost and overclocking performance of Intel's new generation CPU.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


ASRock A520M-HDV DDR4 3rd Gen AMD Motherboard. ASRock Motherboard Model A520M-HDV, Motherboard Brand ASRock. ASRock A520M-HDV DDR4 Motherboard Supported Processor AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop, ASRock Motherboard Chipset AMD A520, ASRock A520M-HDV Socket AMD AM4 Socket. ASRock  3rd Gen AMD Motherboard Micro ATX Form Factor, Motherboard Memory Types DDR4 and Dual Channel, Motherboard Memory 2 x DDR4 DIMM Slots, ASRock Motherboard Supported Bus Speed 3200/2933/2667/2400/2133 MHz, ASRock A520M-HDV Motherboard Maximum Memory 64 GB. You can get ASRock A520M-HDV DDR4 3rd Gen AMD Motherboard at the best price in BD. ASRock Motherboard Expansion 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode), 1 x PCI Express 3.0 x1 Slot, ASRock A520M-HDV Motherboard 1 x PS/2 Mouse/Keyboard Port, 2 x USB 2.0 Ports, 4 x USB 3.2 Gen1 Ports, 1 x HDMI Port, 1 x DVI-D Port, 1 x D-Sub Port, PCI-E x1 Gigabit LAN 10/100/1000 Mb/s, 7.1 CH HD Audio. ASRock Motherboard Supported Windows 10 64-bit/11 64-bit, ASRock A520M-HDV Motherboard 03 Years Warranty.
