| Special Price | : | ā§ŗ15,850 |
| Regular Price(EMI) | : | ā§ŗ17,000 |
| Status | : | In Stock |
| Brand | : | MSI |
| Product Code | : | PRO B760M-G |
āĻ āĻ°ā§āĻĄāĻžāĻ° āĻāĻ°āĻžāĻ° āĻĒā§āĻ°ā§āĻŦā§ āĻāĻžāĻ¸ā§āĻāĻŽāĻžāĻ° āĻā§ā§āĻžāĻ° āĻĨā§āĻā§ āĻĒāĻŖā§āĻ¯ā§āĻ° āĻ¸ā§āĻāĻ āĻ¸āĻŽā§āĻĒāĻ°ā§āĻā§ āĻā§āĻ¨ā§ āĻ¨ā§ā§āĻžāĻ° āĻāĻ¨ā§āĻ¯ āĻ āĻ¨ā§āĻ°ā§āĻ§ āĻāĻ°āĻž āĻ¯āĻžāĻā§āĻā§āĨ¤ āĻĒā§āĻ°āĻ¯ā§āĻā§āĻ¤āĻŋ āĻĒāĻŖā§āĻ¯ā§āĻ° āĻŽā§āĻ˛ā§āĻ¯ āĻ āĻ¸ā§āĻĨāĻŋāĻ¤āĻŋāĻļā§āĻ˛ āĻšāĻā§āĻžāĻ° āĻāĻžāĻ°āĻ¨ā§ āĻ¯ā§āĻā§āĻ¨ā§ āĻŽā§āĻšā§āĻ°ā§āĻ¤ā§ āĻŽā§āĻ˛ā§āĻ¯ āĻĒāĻ°āĻŋāĻŦāĻ°ā§āĻ¤āĻ¨ āĻšāĻ¤ā§ āĻĒāĻžāĻ°ā§āĨ¤
| General Information | ||

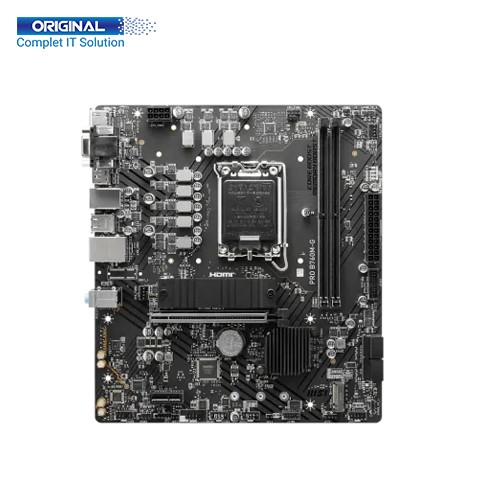

| Model | MSI PRO B760M-G | |
| Brand | MSI | |
| Supported Processor | Supports 12th/13th Gen Intel Core Pentium Gold and Celeron Processors | |
| Chipset | INTEL B760 | |
| Socket | LGA 1700 | |
| Form Factor | mATX 220mmx243.84mm | |
| Memory Information | ||
| Memory Types | DDR5 | |
| Channel | Dual-Channel | |
| Slot | 2 Slot | |
| Supported Bus Speed | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: âĸ 1DPC 1R Max speed up to 6400+ MHz âĸ 1DPC 2R Max speed up to 5600+ MHz |
|
| Maximum Memory | 96GB | |
| Graphics Information | ||
| Graphics | 1x HDMI |
|
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot |
|
| Storage Information | ||
| M.2 | 2x M.2 |
|
| SATA | 4x SATA 6G | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Connector Information | ||
| Internal Connectors | 1x Power Connector(ATX_PWR) |
|
| Port Information | ||
| PS/2 Port | 1x Keyboard / Mouse | |
| VGA Port | 1x VGA | |
| USB Port | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
|
| HDMI Port | 1x HDMI | |
| Display Port | 1x DisplayPort | |
| LAN Port | RealtekÂŽ RTL8125B 2.5Gbps LAN | |
| Audio Port | RealtekÂŽ ALC897 Codec 7.1-Channel High-Definition Audio |
|
| Others Information | ||
| LED FEATURE | 4x EZ Debug LED | |
| Operating System | ||
| Supported OS | Support for WindowsÂŽ 11 64-bit, WindowsÂŽ 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years Warranty | |
MSI PRO B760M-G 12th & 13th Gen mATX Motherboard. PRO Series Motherboard is tailored to professionals from all walks of life. The lineup features impressive performance and high quality while aiming to provide users with an incredible experience.
MSI PRO B760M-G 12th & 13th Gen mATX Motherboard. It is Model MSI PRO B760M-G, Brand MSI, Supported Processor Supports 12th/13th Gen Intel Core Pentium Gold and Celeron Processors, Chipset INTEL B760, Socket LGA 1700, Form Factor mATX 220mmx243.84mm, Memory Types DDR5, Channel Dual-Channel, Slot 2 Slot, Supported Bus Speed Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC), Max. overclocking frequency:, âĸ 1DPC 1R Max speed up to 6400+ MHz,âĸ 1DPC 2R Max speed up to 5600+ MHz, Graphics 1x HDMI, Support HDMIâĸ 2.1 with HDR, the maximum resolution of 4K 60Hz, 1x DisplayPort, Support DP 1.4, the maximum resolution of 4K 60Hz, Support VGA, the maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz, PCI 1x PCI-E x16 slot, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 4.0 supports up to (From CPU), PCI_E2 Gen PCIe 4.0 supports up to (From Chipset), M.2 2x M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices, Internal Connectors 1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x CPU Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 3.2 Gen1 Type A ports, PS/2 Port 1x Keyboard / Mouse, VGA Port 1x VGA, USB Port 2x USB 2.0 (Rear), 4x USB 2.0 (Front), 4x USB 3.2 Gen1 Type A (Rear), 2x USB 3.2 Gen1 Type A (Front), Audio Port RealtekÂŽ ALC897 Codec, 7.1-Channel High-Definition Audio, Supported OS Support for WindowsÂŽ 11 64-bit, WindowsÂŽ 10 64-bit. The MSI PRO B760M-G 12th & 13th Gen mATX Motherboard has a 03 Years Warranty.
