| Special Price | : | ą§³12,100 |
| Regular Price(EMI) | : | ą§³13,200 |
| Status | : | In Stock |
| Brand | : | MSI |
| Product Code | : | B450-A PRO MAX |
ą¦ ą¦°ą§ą¦”ą¦¾ą¦° ą¦ą¦°ą¦¾ą¦° ą¦Ŗą§ą¦°ą§ą¦¬ą§ ą¦ą¦¾ą¦øą§ą¦ą¦®ą¦¾ą¦° ą¦ą§ą§ą¦¾ą¦° ą¦„ą§ą¦ą§ ą¦Ŗą¦£ą§ą¦Æą§ą¦° ą¦øą§ą¦ą¦ ą¦øą¦®ą§ą¦Ŗą¦°ą§ą¦ą§ ą¦ą§ą¦Øą§ ą¦Øą§ą§ą¦¾ą¦° ą¦ą¦Øą§ą¦Æ ą¦ ą¦Øą§ą¦°ą§ą¦§ ą¦ą¦°ą¦¾ ą¦Æą¦¾ą¦ą§ą¦ą§ą„¤ ą¦Ŗą§ą¦°ą¦Æą§ą¦ą§ą¦¤ą¦æ ą¦Ŗą¦£ą§ą¦Æą§ą¦° ą¦®ą§ą¦²ą§ą¦Æ ą¦ ą¦øą§ą¦„ą¦æą¦¤ą¦æą¦¶ą§ą¦² ą¦¹ą¦ą§ą¦¾ą¦° ą¦ą¦¾ą¦°ą¦Øą§ ą¦Æą§ą¦ą§ą¦Øą§ ą¦®ą§ą¦¹ą§ą¦°ą§ą¦¤ą§ ą¦®ą§ą¦²ą§ą¦Æ ą¦Ŗą¦°ą¦æą¦¬ą¦°ą§ą¦¤ą¦Ø ą¦¹ą¦¤ą§ ą¦Ŗą¦¾ą¦°ą§ą„¤
| General Information | ||

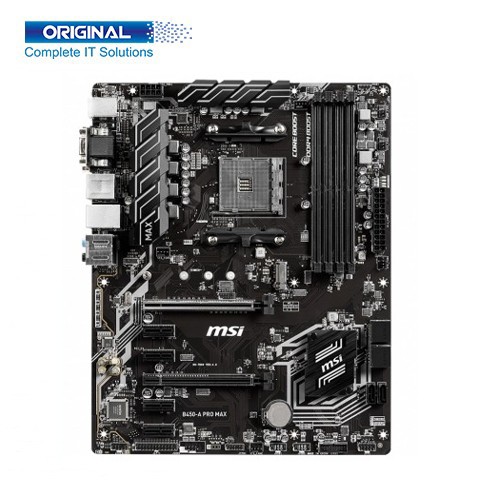

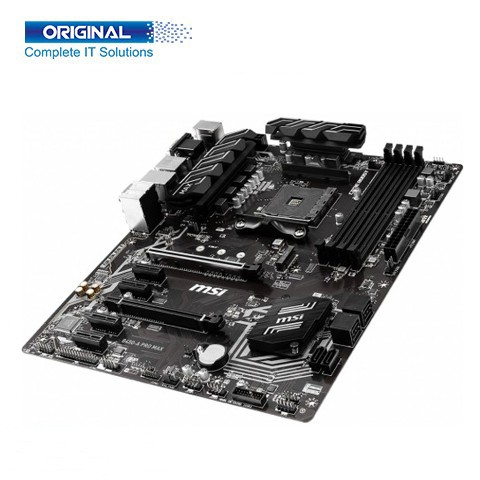

| Model | MSI B450-A PRO MAX | |
| Brand | MSI | |
| Supported Processor | Supports 1st, 2nd and 3rd Gen AMD Ryzen with Radeon / Athlon with Radeon Vega Graphics Desktop Processors | |
| Chipset | AMD B450 Chipset | |
| Socket | AM4 | |
| Form Factor | 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor |
|
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual channel | |
| Slot | 4 x DDR4 memory slots | |
| Supported Bus Speed | Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)For AMD Ryzen Gen3 (R5/R7/R9) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz(by A-XMP OC MODE)For AMD Other CPU Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE) Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) |
|
| Maximum Memory | 128GB | |
| Graphics Information | ||
| Graphics | 1 x VGA port, support a maximum resolution of 2048x1280 @60Hz,1920x1200 @60Hz12 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz12 1 x HDMI 2.0b with HDR port, supports a maximum resolution of 4K @60Hz12 |
|
| Expansion Slots | ||
| PCI | 1 x PCIe 3.0 x16 slot (PCI_E1) 1st, 2nd and 3rd Gen AMD Ryzenā¢ support x16 mode Ryzenā¢ with Radeonā¢ Vega Graphics and 2nd Gen AMD Ryzenā¢ with Radeonā¢ Graphics support x8 mode Athlonā¢ with Radeonā¢ Vega Graphics support x4 mode 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1 4 x PCIe 2.0 x1 slots1 |
|
| Storage Information | ||
| M.2 | 1 x M.2 slot (Key M) |
|
| SATA | 2 x SATA 6Gb/s ports 4 x SATA 6Gb/s ports |
|
| RAID | Supports RAID 0, RAID1 and RAID 10 for SATA storage devices | |
| Connector Information | ||
| Internal Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Serial port connector 1 x Parallel port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x 5050 RGB LED strip 12V connector |
|

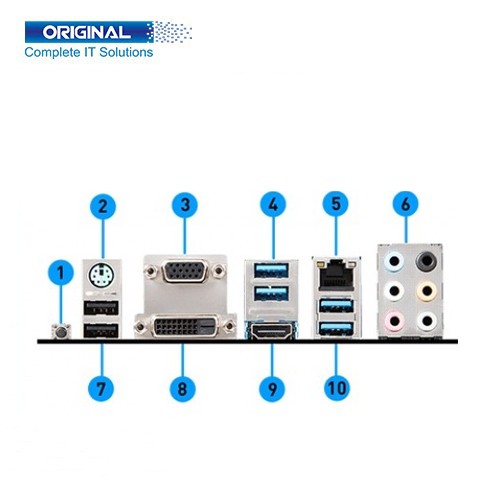

| Port Information | ||
| PS/2 Port | 1X PS/2 Combo Port |
|
| VGA Port | 1X VGA Port | |
| HDMI Port | 1X HDMI Port | |
| USB Port | 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) |
|
| Display Port | 1X DVI-D Port | |
| LAN Port | 1 x RealtekĀ® 8111H Gigabit LAN controller | |
| Audio Port | 7.1-Channel High-Definition Audio | |
| Flashback Button | 1X Flash BIOS Button | |
| Operating System | ||
| Supported OS | Support for Windows 10 64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
|
| Warranty | ||
| Warranty | 03 Years Warranty | |
MSI B450-A PRO MAX AMD AM4 Motherboard. The MSI motherboards feature tons of convenient and smart designs, such as a convenient pin-header keep-out zone, friendly SATA & USB location, and so on, so DIY users can pick and choose any gaming rig they want.
MSI B450-A PRO MAX AMD AM4 Motherboard. The Model is MSI B450-A PRO MAX, Brand MSI, Supported Processor Supports 1st, 2nd and 3rd Gen AMD Ryzen with Radeon / Athlon with Radeon Vega Graphics Desktop Processors, Chipset AMD B450 Chipset, Socket AM4, Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm), ATX Form Factor, Memory Types DDR4, Channe Dual channel, Slot 4 x DDR4 memory slots, Supported Bus Speed Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)For AMD Ryzen Gen3 (R5/R7/R9), Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz(by A-XMP OC MODE)For AMD Other CPU, Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE), Supports non-ECC UDIMM memory, Supports ECC UDIMM memory (non-ECC mode), Maximum Memory 128GB, Graphics 1 x VGA port, supports a maximum resolution of 2048x1280 @60Hz,1920x1200 @60Hz12, 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz12, 1 x HDMI 2.0b with HDR port, supports a maximum resolution of 4K @60Hz12, PCI 1 x PCIe 3.0 x16 slot (PCI_E1), 1st, 2nd, and 3rd Gen AMD Ryzenā¢ support x16 mode, Ryzenā¢ with Radeonā¢ Vega Graphics and 2nd Gen AMD Ryzenā¢ with Radeonā¢ Graphics support x8 mode, Athlonā¢ with Radeonā¢ Vega Graphics support x4 mode, 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1, 4 x PCIe 2.0 x1 slots1, M.2 1 x M.2 slot (Key M), SATA 2 x SATA 6Gb/s ports, 4 x SATA 6Gb/s ports, RAID Supports RAID 0, RAID1 and RAID 10 for SATA storage devices, Internal Connectors 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 6 x SATA 6Gb/s connectors, 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports), 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports), 1 x 4-pin CPU fan connector, 1 x 4-pin water-pump-fan connector, 4 x 4-pin system fan connectors, 1 x TPM module connector, 1 x Front panel audio connector, 2 x System panel connectors, 1 x Serial port connector, 1 x Parallel port connector, 1 x Chassis Intrusion connector, 1 x Clear CMOS jumper, 1 x 5050 RGB LED strip 12V connector, PS/2 Port 1X PS/2 Combo Port, VGA Port 1X VGA Port, HDMI Port 1X HDMI Port, USB Port 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel, 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector, 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors), Display Port 1X DVI-D Port, LAN Port 1 x RealtekĀ® 8111H Gigabit LAN controller, Audio Port 7.1-Channel High-Definition Audio, Flashback Button 1X Flash BIOS Button. The MSI B450-A PRO MAX AMD AM4 Motherboard has a 03 Years Warranty.
