MSI B550 GAMING GEN3 AMD AM4 ATX Motherboard

Special Price :           ৳15,250
Regular Price(EMI) :           ৳16,450
Status :           In Stock
Brand :           MSI
Product Code :           B550 GAMING GEN3

Short Details:

  • • Model: MSI B550 GAMING GEN3
  • • Socket: AM4
  • • Memory Types: DDR4
  • • Maximum Memory: 128GB

See More Details

৳15,250

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model MSI B550 GAMING GEN3
Brand MSI
Supported Processor Supported AMD Ryzen 5000, 5000 G, 4000 G, and 3000 Series processors
Chipset AMD B550 Chipset
Socket AM4
BIOS

1x 256 Mb flash

UEFI AMI BIOS

ACPI 6.1, SMBIOS 2.8

Multi-language

Form Factor

ATX Form Factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Memory Information
Memory Types DDR4
Channel Dual channel
Slot 4x memory slots
Supported Bus Speed

Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE

1DPC 1R max speed 4400 MHz

1DPC 2R max speed 3733 MHz

2DPC 1R max speed 3866 MHz

2DPC 2R max speed 3466 MHz

Maximum Memory 128GB
Graphics Information
Graphics
  • 1x DVI-D port, support a maximum resolution of 1920x1200 @60Hz
  • 1x HDMI™ 2.0b port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz
  • The maximum shared memory of 16 GB
Expansion Slots
PCI
  • 2x PCIe x16 slots
    PCI_E1 slot (From CPU)
    Supports PCIE 3.0 x16
    PCI_E4 1(From B550 chipset)
    Supports PCIe 3.0 x4
    4x PCIe x1 slots
    PCI_E2, E3, E5 and E6 slots (From B550 chipset)
    Supports PCIe 2.0 X1
Storage Information
M.2

1x M.2 slot (Key M)

M2_1 slot (From CPU)

SATA

6x SATA 6Gb/s ports (From B550 chipset)

Supports SATA 6Gb/s

RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Connector Information
Internal Connectors

POWER CONNECTORS

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

INTERNAL USB CONNECTORS

1x USB 3.2 Gen 1 5Gbps connector (From B550 chipset)

Supports additional 2 USB 3.2 Gen 1 5Gbps ports

2x USB 2.0 connectors (From B550 chipset)

Supports additional 4 USB 2.0 ports

FAN CONNECTORS

1x 4-pin CPU fan connector

1x 4-pin water pump fan connector

4x 4-pin system fan connectors

SYSTEM CONNECTORS

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x TPM module connector

1x Serial port connector

1x Parallel port connector

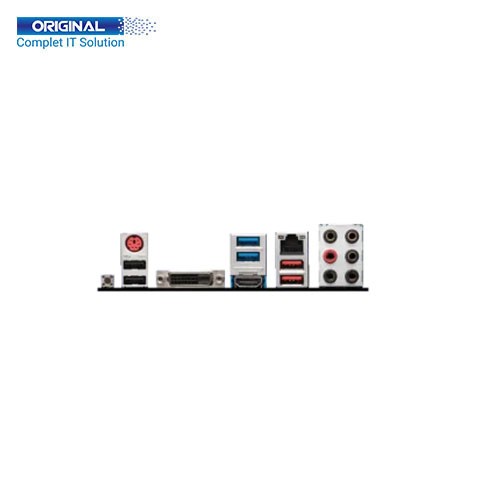

Port Information
PS/2 Port

1x Keyboard / Mouse

USB Port

USB 3.2 Gen 1 5Gbps Type-A

USB 3.2 Gen 2 10Gbps Type-A

USB 2.0

HDMI Port 1x HDMI 2.0b
DVI-D (s) 1x DVI-D port
LAN Port 1x Realtek® RTL8111H LAN controller
Audio Port

Realtek® ALC897 Codec

7.1-Channel High-Definition Audio

Flash BIOS Button 1x Flash BIOS Button
Others Information
LED FEATURES

2x 4-pin RGB LED connectors

4x EZ Debug LED

HARDWARE MONITOR

CPU/ System/ Chipset temperature detection

CPU/ System/ Pump fan speed detection

CPU/ System/ Pump fan speed control

SOFTWARE

MSI Center

CPU-Z MSI GAMING

Google Chrome™, Google Toolbar, Google Drive

Norton Internet Security Solution

Operating System
Supported OS Windows 11, 10
Warranty
Warranty 03 Years Warranty

Description:


MSI B550 GAMING GEN3 AMD AM4 ATX Motherboard


MSI B550 GAMING GEN3 AMD AM4 ATX Motherboard. MSI B550 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.


MSI B550 GAMING GEN3 AMD AM4 ATX Motherboard. It is Model MSI B550 GAMING GEN3, Brand MSI, Supported Processor Supported AMD Ryzen 5000, 5000 G, 4000 G, and 3000 Series processors, Chipset AMD B550 Chipset, Socket AM4, BIOS 1x 256 Mb flash, UEFI AMI BIOS, ACPI 6.1, SMBIOS 2.8, Multi-language, Form Factor ATX Form Factor, 12 in. x 9.6 in. (30.5 cm x 24.4 cm), Memory Types DDR4, Channel Dual channel, Slot 4x memory slots, Supported Bus Speed Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC, Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE, 1DPC 1R max speed 4400 MHz, 1DPC 2R max speed 3733 MHz, 2DPC 1R max speed 3866 MHz, 2DPC 2R max speed 3466 MHz, Maximum Memory 128GB, Graphics 1x DVI-D port, support a maximum resolution of 1920x1200 @60Hz, 1x HDMI™ 2.0b port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz, The maximum shared memory of 16 GB, PCI 2x PCIe x16 slots, PCI_E1 slot (From CPU), Supports PCIE 3.0 x16, PCI_E4 1(From B550 chipset), Supports PCIe 3.0 x4, 4x PCIe x1 slots, PCI_E2, E3, E5 and E6 slots (From B550 chipset), Supports PCIe 2.0 X1, M.2 1x M.2 slot (Key M), M2_1 slot (From CPU), SATA 6x SATA 6Gb/s ports (From B550 chipset), Supports SATA 6Gb/s, RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices, Internal Connectors POWER CONNECTORS, 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, INTERNAL USB CONNECTORS, 1x USB 3.2 Gen 1 5Gbps connector (From B550 chipset), Supports additional 2 USB 3.2 Gen 1 5Gbps ports, 2x USB 2.0 connectors (From B550 chipset), Supports additional 4 USB 2.0 ports, FAN CONNECTORS, 1x 4-pin CPU fan connector, 1x 4-pin water pump fan connector, 4x 4-pin system fan connectors, SYSTEM CONNECTORS, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connectorm, 1x TPM module connector, 1x Serial port connector, 1x Parallel port connector, PS/2 Port 1x Keyboard / Mouse, USB Port SB 3.2 Gen 1 5Gbps Type-A, USB 3.2 Gen 2 10Gbps Type-A, USB 2.0, HDMI Port 1x HDMI 2.0b, DVI-D (s) 1x DVI-D port, LAN Port 1x Realtek® RTL8111H LAN controller, Audio Port Realtek® ALC897 Codec, 7.1-Channel High-Definition Audio, Flash BIOS Button 1x Flash BIOS Button, LED FEATURES 2x 4-pin RGB LED connectors, 4x EZ Debug LED, HARDWARE MONITOR CPU/ System/ Chipset temperature detection, CPU/ System/ Pump fan speed detection, CPU/ System/ Pump fan speed control, SOFTWARE MSI Center, CPU-Z MSI GAMING, Google Chrome™, Google Toolbar, Google Drive, Norton Internet Security Solution. The MSI B550 GAMING GEN3 AMD AM4 ATX Motherboard has come with 03 Years Warranty.
