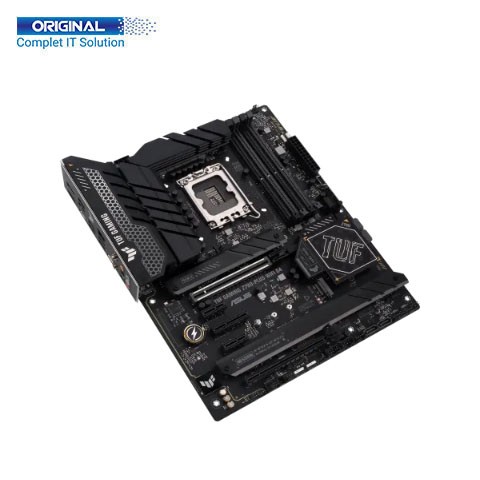

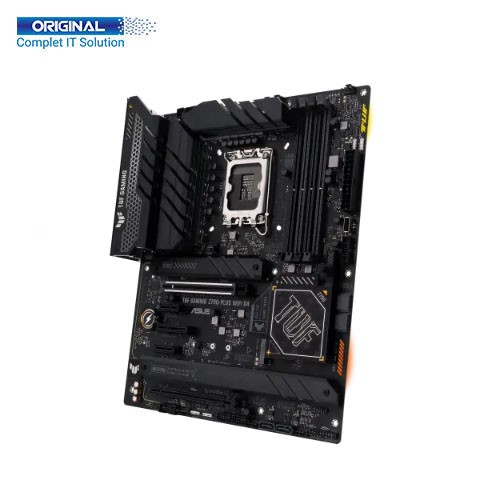

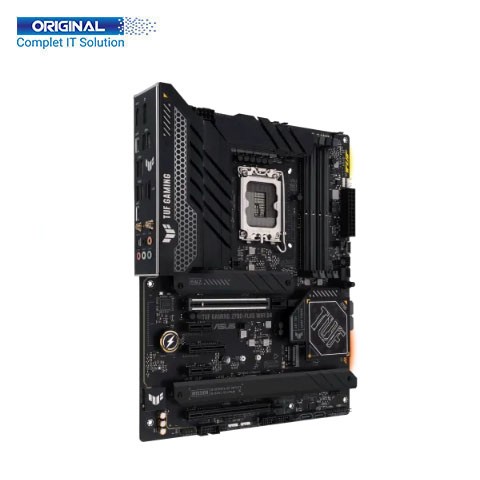

Asus TUF GAMING Z790-PLUS WIFI D4 13th & 12th Gen ATX Motherboard

Special Price :           ৳38,350
Regular Price(EMI) :           ৳42,600
Status :           In Stock
Brand :           Asus
Product Code :           TUF GAMING Z790-PLUS WIFI D4

Short Details:

  • • Model: TUF GAMING Z790-PLUS WIFI D4
  • • Processor: 13th Gen & 12th Gen Processors
  • • Chipset: Intel Z790 Chipset
  • • Socket: LGA1700

See More Details

৳38,350

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

TUF GAMING Z790-PLUS WIFI D4

Brand ASUS
Supported Processor 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors*
Chipset Intel Z790 Chipset
Socket LGA1700
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Memory Information
Memory Types DDR4
Channel Dual Channel
Slot 4 x DIMM
Supported Bus Speed 5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC) /3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory
Maximum Memory 128GB
Graphics Information
Graphics

1 x DisplayPort
1 x HDMI port
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
* Supports 4K@60Hz as specified in HDMI 2.1.
* VGA resolution support depends on the processors' or graphic cards' resolution.

Expansion Slots
PCI

Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots
* Please check the PCIe bifurcation table at the support site

Storage Information
M.2

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

SATA 4 x SATA 6Gb/s ports
RAID * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Connector Information
Internal Connector

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header

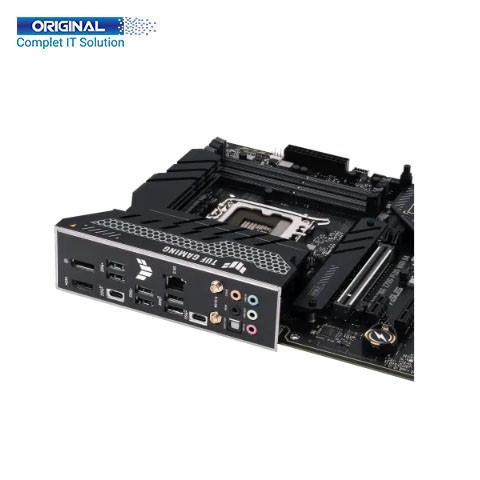

Port Information
USB Port

Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

HDMI Port 1 x HDMI® port
Display Port 1 x DisplayPort
LAN Port 1 x Intel® 2.5Gb Ethernet port
Audio Jack

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

5 x Audio jacks

Wi-Fi Module 1 x Wi-Fi Module
Optical S/PDIF 1 x Optical S/PDIF out port
Others Information
Wireless & Bluetooth

Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2*

Special Features

ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- Aura RGB header
- Addressable Gen 2 headers

Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Two-Way AI Noise Cancelation
- Power Saving
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

Operating System
Supported OS

Windows 11,
Windows 10 64-bit

Warranty
Warranty 3 Years Warranty

Description:


Asus TUF GAMING Z790-PLUS WIFI D4 13th & 12th Gen ATX Motherboard


Asus TUF GAMING Z790-PLUS WIFI D4 13th & 12th Gen ATX Motherboard. Aesthetically, this model incorporates an embossed nameplate and honeycomb design elements to reflect the dependability and stability that defines the TUF GAMING series.


Asus TUF GAMING Z790-PLUS WIFI D4 13th & 12th Gen ATX Motherboard. It is Motherboard Supported Processor 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors*, Chipset Intel Z790 Chipset, Socket LGA1700, BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS, Form Factor ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ), Memory Types DDR4, Channel Dual Channel, Slot 4 x DIMM, Supported Bus Speed 5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC) /3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory, Graphics 1 x DisplayPort, 1 x HDMI port, ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. This * Supports 4K@60Hz as specified in HDMI 2.1, * VGA resolution support depends on the processors' or graphic cards' resolution, PCI Intel® 13th & 12th Gen Processors, 1 x PCIe 5.0 x16 slot, Intel Z790 Chipset, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x4 slot, 2 x PCIe 3.0 x1 slots,* Please check the PCIe bifurcation table at the support site, M.2 Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports, Intel® 13th & 12th Gen Processors, M.2_1 slot (Key M), type 2242/2260/2280/22110, - Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode, Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes), USB Port Rear USB (Total 8 ports), 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®), 4 x USB 3.2 Gen 1 ports (4 x Type-A), Front USB (Total 7 ports), 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports. The Asus TUF GAMING Z790-PLUS WIFI D4 13th & 12th Gen ATX Motherboard has a 3 Years Warranty.
