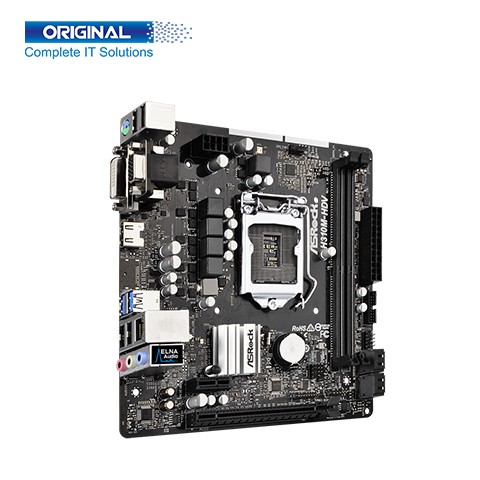

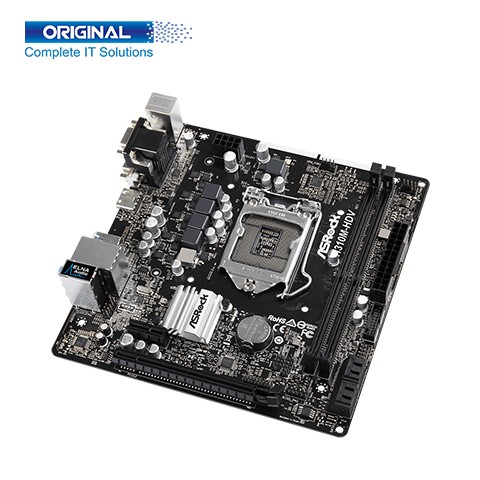

Asrock H310M-HDV DDR4 9th and 8th Gen Micro Atx Motherboard

Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)

Supports CPU up to 95W

5 Power Phase design

Supports Intel® Turbo Boost 2.0 Technology

128Mb AMI UEFI Legal BIOS with multilingual GUI support

ACPI 6.0 Compliant wake up events

SMBIOS 2.7 Support

DRAM, PCH 1.05V Voltage Multi-adjustment

Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics

- DirectX 12

- HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1

- Three graphics output options: D-Sub, DVI-D and HDMI**

- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz

- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)

- Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports

- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*

1 x PCI Express 2.0 x1 Slot

1 x TPM Header

1 x Chassis Intrusion and Speaker Header

1 x CPU Fan Connector (4-pin)

1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**

1 x 24 pin ATX Power Connector

1 x 8 pin 12V Power Connector

1 x Front Panel Audio Connector

1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)

1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

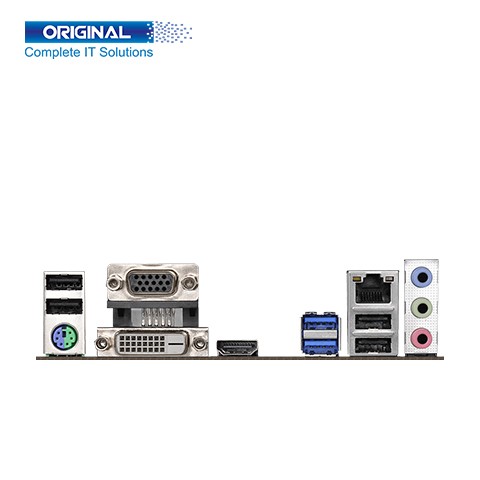

4 x USB 2.0 Ports (Supports ESD Protection)

2 x USB 3.1 Gen1 Ports (Supports ESD

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

PCIE x1 Gigabit LAN 10/100/1000 Mb/s
