| Special Price | : | ৳9,150 |
| Regular Price(EMI) | : | ৳10,100 |
| Status | : | In Stock |
| Brand | : | Gigabyte |
| Product Code | : | H470M K |
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।
| General Information | ||
| Model | H470M K | |
| Brand | Gigabyte | |
| Supported Processor | 11th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors L3 cache varies with the CPU |
|
| Chipset | Intel® H470 Express Chipset | |
| Socket | LGA1200 | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 2 x DIMM | |
| Supported Bus Speed | 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer to "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
|
| Maximum Memory | 64GB (32 GB single DIMM capacity) | |
| Graphics Information | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot: Supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
| Storage Information | ||
| M.2 | 1 x M.2 connector: Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD |
|
| SATA | 2 x SATA 6Gb/s connectors | |
| RAID | Support for RAID 0, RAID 1, and RAID 5 | |
| Connector Information | ||
| Internal Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper |
|
| Port Information | ||
| USB Port | 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
| HDMI Port | 1 x HDMI port | |
| LAN Port | Realtek® GbE LAN chip (1 Gbps/100 Mbps)
1 x RJ-45 port |
|
| Audio Jack | 3 x audio jacks | |
| Operating System | ||
| Supported OS | Support for Windows 11 64-bit Support for Windows 10 64-bit |
|
| Warranty | ||
| Warranty | 03 Years | |

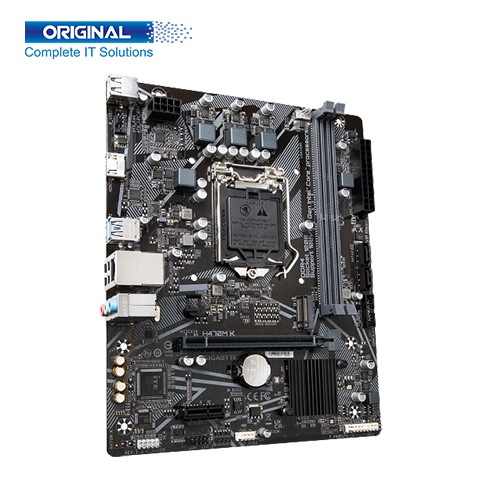

Gigabyte H470M K DDR4 Intel Micro ATX Motherboard. The Motherboard has Intel Ultra Durable with GbE LAN, Anti-Sulfur Resistor, and Smart Fan 5. It supports 11th/10th Generation Intel Core Processors, Dual Channel Non-ECC Unbuffered DDR4, and 2 DIMMs. 8-Channel HD Audio with High-Quality Audio Capacitors. NVMe PCIe Gen3 x4 2280 M.2 Connector. GbE LAN with Bandwidth Management. Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP. GIGABYTE APP Center, Simple and Easy Use. Anti-Sulfur Resistors Design.
Gigabyte H470M K DDR4 Intel Micro ATX Motherboard. The Motherboard Model is H470M K. The Brand Gigabyte. Supported Processor 11th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors. 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors. L3 cache varies with the CPU. Chipset Intel® H470 Express Chipset Socket LGA1200. BIOS 1 x 128 Mbit flash. Use of licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. Micro ATX Form Factor; 22.6cm x 18.5cm. Memory Types DDR4, Dual Channel. Slot 2 x DIMM. Maximum Memory 64GB (32 GB single DIMM capacity). Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz. PCI 1 x PCI Express x16 slot: Supporting PCIe 3.0 and running at x16. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1. M.2 1 x M.2 connector: Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD. 2 x SATA 6Gb/s connectors. Support for RAID 0, RAID 1, and RAID 5. USB Port 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header). 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header). 1 x HDMI port. Realtek® GbE LAN chip (1 Gbps/100 Mbps). 1 x RJ-45 port. 3 x audio jacks. Supported Operating System Windows 11 64-bit & Windows 10 64-bit. Gigabyte H470M K DDR4 Intel Micro ATX Motherboard comes with 03 years warranty.
