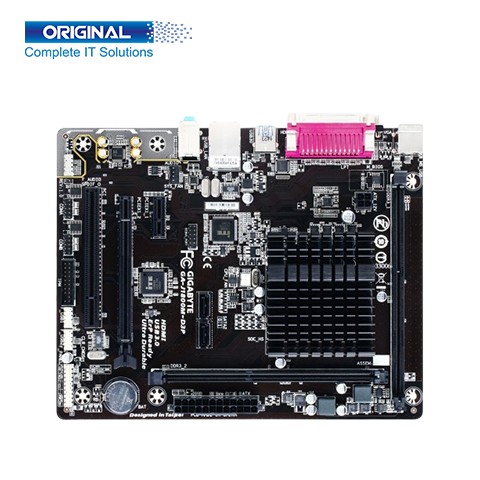

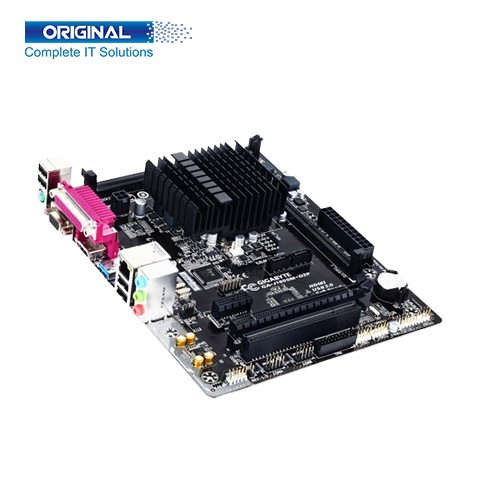

Gigabyte GA-J1800M-D3P Motherboard with Built In 2.41Ghz DDR3 Celeron Processor

Special Price :           ৳6,450
Regular Price(EMI) :           ৳7,100
Status :           In Stock
Brand :           Gigabyte
Product Code :           GA-J1800M-D3P

Short Details:

  • • Model: GA-J1800M-D3P
  • • Chipset: Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz)
  • • Form Factor: Micro ATX Form Factor; 22.6cm x 18.0cm
  • • Slot: 2 x DIMM

See More Details

৳6,450

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model GA-J1800M-D3P
Brand Gigabyte
Supported Processor

Built-in with an Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz)

* Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.

1 MB Cache

Chipset Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz)
BIOS

1 x 64 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor Micro ATX Form Factor; 22.6cm x 18.0cm
Memory Information
Memory Types DDR3
Channel Dual channel
Slot 2 x DIMM
Supported Bus Speed

Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture

Support for DDR3/-L 1333 MHz memory modules

Support for non-ECC memory modules

Maximum Memory 8GB
Graphics Information
Graphics

Integrated in the SoC:

1 x D-Sub port, supporting a maximum resolution of 2560x1600

1 x HDMI port, supporting a maximum resolution of 1920x1080

Expansion Slots
PCI

1 x PCI Express x16 slot, running at x1(PCIEX1_2)

1 x PCI Express x1 slot

1 x PCI slot

Storage Information
SATA

Integrated in the SoC:

2 x SATA 3Gb/s connectors

Connector Information
Internal Connector

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

2 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

2 x USB 2.0/1.1 headers

2 x serial port headersŠŠ

1 x Trusted Platform Module (TPM) header

1 x Clear CMOS jumper

Port Information
PS/2 Port

1 x PS/2 keyboard/mouse port

USB Port

Integrated in the SoC:

1 x USB 3.0/2.0 port on the back panel

SoC + GL850 USB 2.0 Hub:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

HDMI Port 1 x HDMI port
D-Sub Port 1 x D-Sub port
Parallel Port 1 x parallel port
LAN Port

Realtek® GbE LAN chip (10/100/1000 Mbit)

1 x RJ-45 port

Audio Jack 3 x audio jacks (Line In, Line Out, Mic In)
Operating System
Supported OS Windows 10/8.1/8/7
Warranty
Warranty 03 Years

Description:


Gigabyte GA-J1800M-D3P Motherboard with Built In 2.41Ghz DDR3 Celeron Processor


Gigabyte-GA-J1800M-D3P-Motherboard. The GIGABYTE J1800M micro ATX motherboard is a fully integrated PC motherboard featuring the Intel® Celeron™ J1800 dual-core processor. Designed for compact, small form factor PC systems and devices, the GIGABYTE J1800M is entirely fanless, making it ideal for always-on, mission-critical systems, as well as noise-sensitive digital entertainment systems. Connectivity includes digital and analog display outputs via VGA and HDMI ports, while PCIe plus PCI slots provide wide-range expansion card selections.


Gigabyte-GA-J1800M-D3P-Motherboard. The Motherboard Model is GA-J1800M-D3P. The Brand Gigabyte. Supported Processor Built-in with an Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz). Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. 1 MB Cache. Chipset Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz). Socket LGA1200. BIOS 1 x 64 Mbit flash. Use of licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. Micro ATX Form Factor; 22.6cm x 18.0cm. Memory Types DDR3, Dual Channel. Slot 2 x DIMM. Maximum Memory 8GB. Graphics Integrated in the SoC: 1 x D-Sub port, supporting a maximum resolution of 2560x1600. 1 x HDMI port, supporting a maximum resolution of 1920x1080. 1 x PCI Express x16 slot, running at x1(PCIEX1_2). 1 x PCI Express x1 slot. 1 x PCI slot. SATA Integrated in the SoC: 2 x SATA 3Gb/s connectors. 1 x PS/2 keyboard/mouse port. USB Port Integrated in the SoC: 1 x USB 3.0/2.0 port on the back panel, SoC + GL850 USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers). 1 x HDMI port. 1 x D-Sub port. 1 x parallel port. Realtek® GbE LAN chip (10/100/1000 Mbit). 1 x RJ-45 port. 3 x audio jacks (Line In, Line Out, Mic In). Supports 2.4/ 5GHz frequency band. Bluetooth v5.0 or later". Supported Operating System Windows 10/8.1/8/7. Gigabyte-GA-J1800M-D3P-Motherboard comes with 03 years warranty.
