| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Gigabyte |
| Product Code | : | B550M S2H |
| General Information | ||
| Model | B550M S2H | |
| Supported Processor | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors | |
| Chipset | AMD B550 | |
| Socket | AM4 | |
| BIOS | * 1 x 256 Mbit flash
* Use of licensed AMI UEFI BIOS
* PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual-channel | |
| Slot | 2 x DDR4 DIMM | |
| Supported Bus Speed | 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz | |
| Maximum Memory | 64 GB | |
| Graphics Information | ||
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR., Maximum shared memory of 16 GB |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, integrated in the CPU: 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2), integrated in the Chipset: Supporting PCIe 3.0 x1 mode |
|
| Storage Information | ||
| M.2 | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280 SSD | |
| SATA | 4 x SATA 6Gb/s connectors, integrated into the Chipset | |
| RAID | Support for RAID 0, RAID 1, and RAID 10 | |
| Connector Information | ||
| Internal Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x chassis intrusion header 1 x Clear CMOS jumper |
|

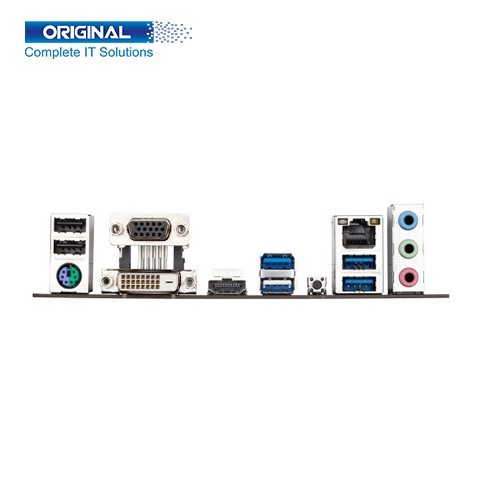

| Port Information | ||
| PS/2 Port | 1 x PS/2 keyboard/mouse port | |
| USB Port | 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports | |
| HDMI Port | 1 x HDMI port | |
| DVI-D Port | 1 x DVI-D port | |
| D-Sub port | 1 x D-Sub port | |
| Audio Port | 3 x audio jacks | |
| Operating System | ||
| Supported OS | Support for Windows 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years Warranty | |
Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard comes with AMD Socket AM4, AMD Socket AM4, support for AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors. AM4 Socket, Chipset AMD B550, Bios is 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, ACPI 5.0, DMI 2.7, WfM 2.0, SM BIOS 2.7, and 24.4cm x 20.5cm ATX Form Factor. B550M S2H GIGABYTE MICRO ATX Motherboard Maximum 64 GB DDR4 Dual Channel Memory, 2 x DDR4 DIMM sockets, Supported Bus Speed 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard comes with standard Graphics such as 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, The DVI-D port does not support D-Sub connection by the adapter, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, Actual support may vary by CPU, Support for HDMI 2.1 version and HDCP 2.3 and HDR. Maximum shared memory of 16 GB. This B550M S2H MICRO ATX GIGABYTE Motherboard Expansion PCI slot is 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots, 4 x SATA 6 GB/s connectors and 1. 1 x M.2 connector, Support for RAID 0, RAID 1, and RAID 10 also various Internal Connectors such as 4 x 24-pin ATX main power connector, 1 x CPU fan header, 1 x front panel audio header, etc. GIGABYTE B550M S2H Motherboard has 5 x USB 3.2 Gen 1 ports, 6 x USB 2.0/1.1 ports, 1 x HDMI port, 1 x D-Sub port, Realtek GbE LAN chip (1000 Mbit/100 Mbit), and High Definition Audio 3 x audio jacks. This GIGABYTE B550M S2H MICRO ATX Motherboard Support for Windows 10 64-bit. Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard 03 Years Warranty.
