Asus Prime Z690-P Intel 12th Gen ATX Motherboard

Special Price :           ৳25,900
Regular Price(EMI) :           ৳28,050
Status :           In Stock
Brand :           Asus
Product Code :           Prime Z690-P

Short Details:

  • • Model: Prime Z690-P
  • • Socket: LGA1700
  • • Form Factor: ATX; 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
  • • Memory Types: DDR5

See More Details

৳25,900

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model

Prime Z690-P

Brand Asus
Supported Processor Support for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset Intel® Z690 Chipset
Socket LGA1700
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX; 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Memory Information
Memory Types

DDR5

Channel Dual Channel
Slot 4 x DIMM
Supported Bus Speed Support for DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory
Maximum Memory 128 GB
Graphics Information
Graphics

1 x DisplayPort (Support max. [email protected] as specified in DisplayPort 1.4)

1 x HDMI port (Supports [email protected] as specified in HDMI 2.1)

Expansion Slots
PCI

* Intel® 13th & 12th Gen Processors

1 x PCIe 5.0/4.0/3.0 x16 slot


* Intel® Z690 Chipset

1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)

2 x PCIe 3.0 x16 slots (support x4 mode)

1 x PCIe 3.0 x1 slot

Storage Information
M.2

supports 3 x M.2 slots

SATA 4 x SATA 6Gb/s ports
RAID Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10
Connector Information
Internal Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers


Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector


Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports


USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports


Miscellaneous

3 x Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x 20-5pin System Panel header

1 x Thunderbolt™ header

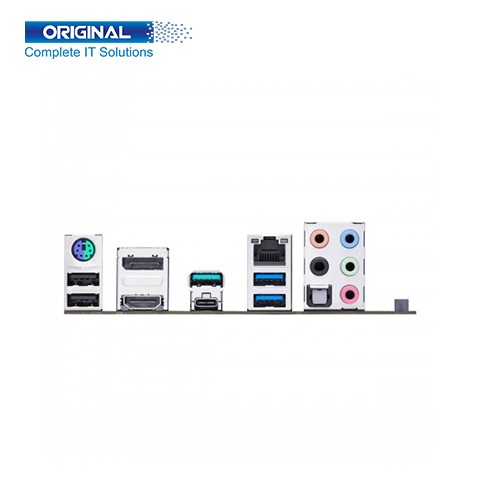

Port Information
PS/2 Port

1 x PS/2 Keyboard/Mouse combo port

USB Port

Rear USB (Total 6 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 9 ports)

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support an additional 4 USB 2.0 ports

HDMI Port 1 x HDMI port
Display Port 1 x DisplayPort
LAN Port 1 x Realtek 2.5Gb Ethernet
Audio Jack 5 x Audio jacks
Other Information
WIFI & BLUETOOTH

V-M.2 slot only (Key E, CNVi & PCIe)

* Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.

Operating System
Supported OS

Windows® 11 64-bit , Windows® 10 64-bit

Warranty
Warranty

3 Years Warranty

Descripton:


Asus Prime Z690-P Intel 12th Gen ATX Motherboard


Asus Prime Z690-P Intel 12th Gen ATX Motherboard With more cores’ processors, thermal and power design is more important to ensure the temperature keeps lower. Support for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Asus extended PWM heatsink and enhanced circuit design ensure even high-end Intel CPU run at full speed with Asus Prime Z690-P Motherboard.


Asus Prime Z690-P Intel 12th Gen ATX Motherboard. Support for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Intel® Z690 Chipset. Socket LGA1700. Form Factor ATX; 12 inch x 9.2 inches ( 30.5 cm x 23.4 cm ). Asus Prime Z690-P Memory Types DDR5, Dual-Channel. Slot 4 x DIMM. Supported Bus Speed is Support for DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory. Maximum Memory 128 GB. Graphics is 1 x DisplayPort (Support max. [email protected] as specified in DisplayPort 1.4), and 1 x HDMI port (Supports [email protected] as specified in HDMI 2.1). PCI is Intel® 13th & 12th Gen Processors: 1 x PCIe 5.0/4.0/3.0 x16 slot, Intel® Z690 Chipset: 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode), 2 x PCIe 3.0 x16 slots (support x4 mode), 1 x PCIe 3.0 x1 slot. Storage Supports 3 x M.2 slots, 4 x SATA 6Gb/s ports. PS/2 Port is 1 x PS/2 Keyboard/Mouse combo port, USB Port is Rear USB (Total 6 ports): 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 1 x USB 3.2 Gen 2 port (1 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A), Front USB (Total 9 ports): 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support an additional 4 USB 2.0 ports, Display Port is 1 x DisplayPort, HDMI Port is 1 x HDMI port, LAN Port is 1 x Realtek 2.5Gb Ethernet, Audio Port is 5 x Audio jacks. Supported Operating System Support for Windows® 11, and Windows® 10 64-bit. Asus Prime Z690-P Intel 12th Gen ATX Motherboard has Three years warranty.
