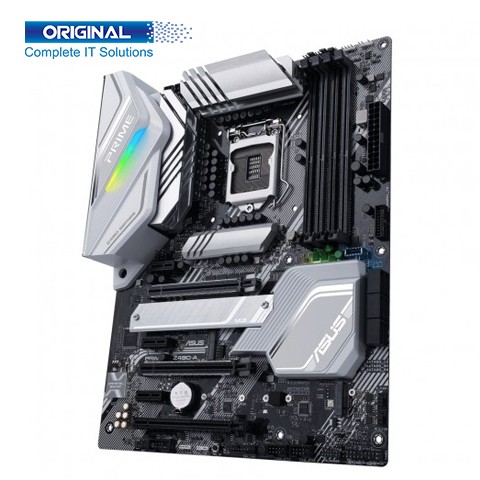

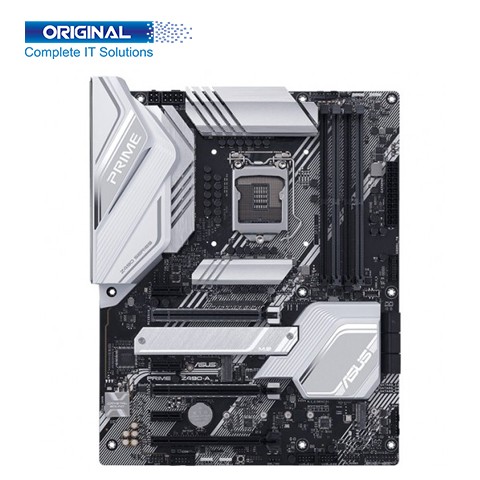

Asus Prime Z490-A DDR4 10th Gen Intel ATX Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Asus
Product Code :           Z490-A

Short Details:

  • • Model: Asus Prime Z490-A
  • • Chipset: Intel® Z490
  • • Form Factor: ATX Form Factor12 inch x 9.6 inch
  • • Memory Types: DDR4

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model Asus Prime Z490-A
Supported Processor Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset Intel® Z490
Socket 1200
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor 12 inch x 9.6 inch
Memory Information
Memory Types DDR4
Channel Dual-Channel
Slot 4 x DIMM
Supported Bus Speed 4800/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz
Maximum Memory 128GB
Graphics Information
Graphics

* 1  x DisplayPort 1.4 *

* 1  x HDMI 1.4b

* Graphics specifications may vary between CPU types.

* Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to

Expansion Slots
PCI

* 2 x PCIe 3.0 x16 (x16 or dual x8) *1

* 1 x PCIe 3.0 x16 (max at x4 mode)

* 3 x PCIe 3.0 x1 *2

Storage Information
M.2

* 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support

* 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support

SATA 6 x SATA 6Gb/s port(s)
RAID Support Raid 0, 1, 5, 10
Connector Information
Internal Connectors

* 1 x CPU Fan connector(s)

* 1 x CPU OPT Fan connector(s)

* 2 x Chassis Fan connector(s)

* 1 x AIO_PUMP connector

* 1 x W_PUMP+ connector

* 1 x AAFP connector

* 2 x Aura RGB Strip Headers

* 2 x Addressable Gen 2 header(s)

* 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)

* 1 x USB 3.2 Gen 1

* 2 x USB 2.0 connector(s)

* 1 x M.2 Socket 1 with M Key

* 1 x M.2 Socket 2 with M key (PCIE 3.0 x 4 mode)

* 1 x M.2 with E key for Wi-Fi module

* 1 x COM port(s) connector(s)

* 6 x SATA 6Gb/s connector(s)

* 1 x Thunderbolt header(s)

* 1 x 24-pin EATX Power connector(s)

* 1 x 8-pin ATX 12V Power connector(s)

* 1 x 4-pin ATX 12V Power connector(s)

* 1 x System panel(s) (Chassis intrusion header is inbuilt)

* 1 x Thermal sensor connector(s)

* 1 x Power-on button(s)

* 1 x Clear CMOS jumper(s)

* 1 x CPU_OV jumper

* 1 x M.2 Fan Header

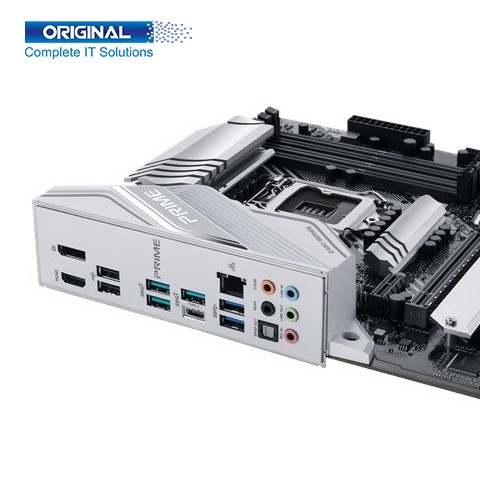

Port Information
USB Port

* 4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C®)

* 2 x USB 3.2 Gen 1

* 2 x USB 2.0

HDMI Port 1 x HDMI
Audio Port 5 x Audio jack(s)
Display Port 1 x DisplayPort
Optical Drive 1 x Optical S/PDIF out
Operating System
Supported OS Windows® 10 64-bit
Warranty
Warranty 03 Years Warranty

Description:


Asus Prime Z490-A DDR4 10th Gen Intel ATX Motherboard


Asus Prime Z490-A motherboard gives you the strong foundation you expect in your first form, in addition to the versatility of developing with your aspirations. We've put together all the cool stuff with basic planning and design in the latest Build-in Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors support, so you can benefit from industry-driven advances, including tuning of mechanical structures. Extensive cooling control, and lively locally available sound.


For more Motherboard information Please Check Gigabyte MotherboardMSI MotherboardAsus MotherboardEsonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.


Asus Prime Z490-A motherboard comes with Intel Chipset Z490 and Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. The comfortable Socket is LGA1200, 192 (128+64) Mb Flash ROM, UEFI AMI BIOS, ATX Form Factor 12 inches x 9.6 inches. In this Asus Prime Z490-A Motherboard, Dual-Channel, 4 x DIMM DDR4 Maximum Memory 128GB, Supported Bus Speed 4800/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz. Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz, 1  x HDMI 1.4b, Graphics specifications may vary between CPU types. PCI slots are 2 x PCIe 3.0 x16 (x16 or dual x8) *1, 1 x PCIe 3.0 x16 (max at x4 mode), 3 x PCIe 3.0 x1 *2. Storage slots is 1 x M.2_1 socket 3, with M key, type 2242/ 260/ 2280/ 22110 storage devices support, 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10. 4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C®), 2 x USB 3.2 Gen 1, 2 x USB 2.0, Audio Port 5 x Audio jack(s), Optical Drive 1 x Optical S/PDIF out. Moreover in the Motherboard, 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x 4-pin ATX 12V Power connector(s), 2 x Chassis Fan connector(s).


Asus Prime Z490-A motherboard OS Support for Windows® 10 64-bit, You can enjoy a 03 Years Warranty. Purchase Motherboard from Original Store Ltd and get online conveyance at any side of Bangladesh.
