| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Asus |
| Product Code | : | H410M-CS |
| General Information | ||
| Model | Asus Prime H410M-CS | |
| Supported Processor | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors | |
| Chipset | Intel H410 | |
| Socket | LGA1200 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor: 8.9 inch x 8.0 inch | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual-Channel | |
| Slot | 2 x DIMM | |
| Supported Bus Speed | 2933/ 2800/ 2666/ 2400/ 2133 MHz | |
| Maximum Memory | 64GB | |
| Graphics Information | ||
| Graphics | Integrated Graphics Processor 1 x D-Sub 1 x HDMI 1.4b | |
| Expansion Slots | ||
| PCI | * 1 x PCIe 3.0 x16 * 1 x PCIe 3.0 x1 |
|
| Storage Information | ||
| M.2 | 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support | |
| SATA | 4 x SATA 6Gb/s port(s) | |
| Connector Information | ||
| Internal Connectors | * 1 x CPU Fan connector(s) * 1 x Chassis Fan connector(s) * 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) * 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) * 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) * 1 x COM port(s) connector(s) * 4 x SATA 6Gb/s connector(s) * 1 x S/PDIF out header(s) * 1 x 24-pin EATX Power connector(s) * 1 x 8-pin EATX 12V Power connectors * 1 x Front panel audio connector(s) (AAFP) * 1 x Clear CMOS jumper(s) * 1 x System panel connector * 1 x Speaker connector |
|
| Port Information | ||
| PS/2 Port | * 1 x PS/2 keyboard (purple) * 1 x PS/2 mouse (green) |
|
| USB Port | * 2 x USB 3.2 Gen 1 Type-A * 2 x USB 2.0 3 x Audio jack(s) |
|
| HDMI Port | 1 x HDMI | |
| D-Sub Port | 1 x D-Sub | |
| LAN Port | *Realtek RTL8111H *1 x LAN |
|
| Audio Port | 3 x Audio jack(s) | |
| Operating System | ||
| Supported OS | Windows® 10 64-bit | |
| Warranty | ||
| Warranty | 03 Years Warranty | |

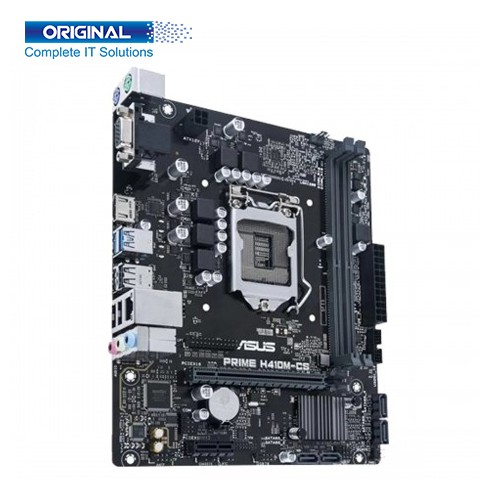

Asus Prime H410M-CS motherboard gives you the strong foundation you expect in your first form and the versatility of developing with your aspirations. We've put together all the cool stuff with essential planning and design in the latest 10th Gen Intel Core, Pentium Gold, and Celeron Processors support so that you can benefit from industry-driven advances, including tuning of mechanical structures. Extensive cooling control, and lively locally available sound.
For more Motherboard information Please Check Gigabyte Motherboard, MSI Motherboard, Asus Motherboard, Esonic Motherboard, and Asrock Motherboard. And also If you Want to know more different type of IT Product information please Click here.
Asus Prime H410M-CS motherboard comes with Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors, Chipset Intel H410, 128 Mb Flash ROM, UEFI AMI BIOS, mATX Form Factor: 8.9-inch x 8.0 inch, Dual Channel 2 x DIMM DDR4 Maximum Memory 64GB, Supported Bus Speed DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz. In this Asus Prime H410M-CS motherboard, Integrated Graphics Processor 1 x D-Sub 1 x HDMI 1.4b. Also in this Asus Prime H410M-CS motherboard, Expansion Slots are 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1. Moreover, Storage ports are 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support, and 4 x SATA 6Gb/s port(s). Also in this motherboard, Internal Connectors are 1 x CPU Fan connector(s), 1 x Chassis Fan connector(s), 1 x COM port(s) connector(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin EATX 12V Power connectors, 1 x System panel connector, 1 x Speaker connector, Moreover, Others ports are 1 x PS/2 mouse (green), 1 x PS/2 keyboard (purple), 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 3 x Audio jack(s), Realtek RTL8111H, 1 x LAN, 3 x Audio jack(s).
Asus Prime H410M-CS motherboard OS Support Windows® 10 64-bit. You can enjoy a 03 Years Warranty. Purchase Motherboard from Original Store Ltd and get online conveyance on any side of Bangladesh.
