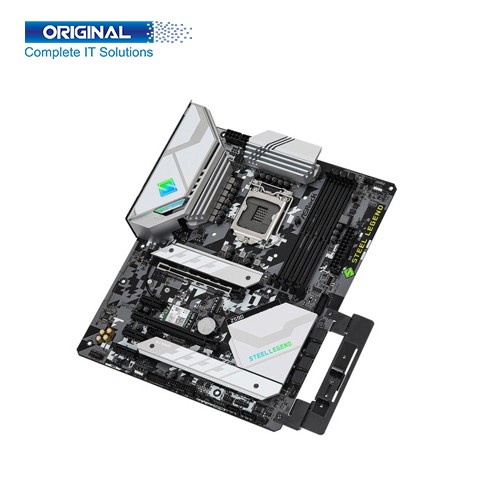

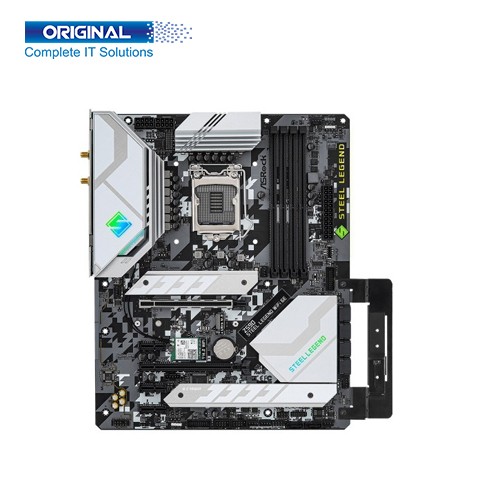

Asrock Z590 Steel Legend 10th and 11th Gen ATX Motherboard

Price :           To be announced
Status :           Out of Stock
Brand :           Asrock
Product Code :           Z590 Steel Legend

Short Details:

  • • Model: Z590 Steel Legend
  • • Brand: Asrock
  • • Chipset: Intel® Z590
  • • Socket: LGA1200

See More Details

Price: To be announced
EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model Z590 Steel Legend
Brand Asrock
Supported Processor Supports 10th Gen Intel® Core™ Processors and 11th
Chipset Intel® Z590
Socket LGA1200
Bios

- 128Mb AMI UEFI Legal BIOS with multilingual GUI support

- ACPI 6.0 Compliant wake up events

- SMBIOS 2.7 Support

- CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VPPM, VCCIN AUX, VCCST Voltage Multi-adjustment

Form Factor

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

- 2oz Copper PCB

Memory Information
Memory Types DDR4
Channel Dual Channel
Slot 4 x DDR4 DIMM Slots
Supported Bus Speed 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)
Maximum Memory 128GB
Graphics Information
Graphics

- 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics

- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers

- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel® Core™ Processors

- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel® Core™ Processors

- Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)

- Supports HDCP 2.2 with DisplayPort and HDMI Ports (HDCP 2.3 ready with 11th Gen

Expansion Slots
PCI

- 6 x SATA3 6.0 Gb/s Connectors

- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only)

- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

- 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

Storage Information
SATA 6 x SATA3 6.0 Gb/s Connectors
RAID

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Connector Information
Internal Connectors

- 1 x SPI TPM Header

- 1 x Power LED and Speaker Header

- 2 x RGB LED Headers*

- 2 x Addressable LED Headers**

- 1 x CPU Fan Connector (4-pin)***

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)

- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

Port Information
USB Port

1 x USB 3.2 Gen2x2 Front Type-C (20Gb/s)

Rear USB 3.2 Gen2 Type A+C (10Gb/s)

6 x USB 3.2 Gen1 (2 x Rear, 4 x Front)

6 x USB 2.0 (2 x Rear, 4 x Front)

HDMI Port 1 x HDMI Port
LAN Port

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

- Dragon RTL8125BG

- Supports Dragon 2.5G LAN Software

- Smart Auto Adjust Bandwidth Control

- Visual User Friendly UI

- Visual Network Usage Statistics

- Optimized Default Setting for Game, Browser, and Streaming Modes

- User Customized Priority Control

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

Audio Port

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

- Supports Surge Protection

- Gold Audio Jacks

- 15μ Gold Audio Connector

- Nahimic Audio

Other Information
Special Features

ASRock USB 3.2 Gen2

- ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)

- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)

ASRock Super Alloy

- XXL Aluminum Alloy Heatsink

- Premium Power Choke

- 50A Dr.MOS

- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)

- I/O Armor

- Shaped PCB Design

- Matte Black PCB

- High Density Glass Fabric PCB

- 2oz Copper PCB

2.5G LAN

ASRock Steel Slot

ASRock Full Coverage M.2 Heatsink

ASRock Hyper M.2 (PCIe Gen4x4)

ASRock Ultra USB Power

ASRock POST Status Checker (PSC)

ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

Operating Systems
Supported OS Microsoft® Windows® 10 64-bit / 11 64-bit
Warranty
Warranty 03 years Manufacturing Warranty

Description:


Asrock Z590 Steel Legend ATX 10th 11th Gen Motherboard



A good Motherboard gives a computer full backup and full support. Good quality works depending on the Motherboard and the Asrock Z590 Steel Legend 10th and 11th Gen ATX Motherboard is one of the best exclusive Motherboard.


The Asrock Z590 Steel Legend 10th 11th Gen ATX Motherboard. ASRock Motherboard Model Z590 Steel Legend, Motherboard Brand ASRock, This Motherboard Supported Processor 10th Gen Intel® Core™ Processors and 11th, Chipset Intel® Z590 Socket LGA1200 ATX Form Factor, ASRock Z590 Steel Legend Memory DDR4 Dual-Channel 4 x DDR4 DIMM Slots Max. the Capacity of system memory 128 GB, Motherboard Supported Bus Speed 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC), ASRock Motherboard PCI Express Slots 6 x SATA3 6.0 Gb/s Connectors, 1 x Hyper M.2 Socket (M2_1), 1 x Ultra M.2 Socket (M2_2), 1 x Ultra M.2 Socket (M2_3), Motherboard Supported Storage SATA And Rapid Storage Technology, This Motherboard Supported Port USB, HDMI, LAN and Audio, ASRock Motherboard Supported Operating Systems Microsoft Windows 10 64-bit / 11 64-bit.


The Available Warranty is 03 Years Manufacturing Warranty.
