ASRock H610M-HDV/M.2 12th Gen Micro ATX Motherboard

Special Price :           ৳10,800
Regular Price(EMI) :           ৳10,800
Status :           In Stock
Brand :           Asrock
Product Code :           H610M-HDV/M.2

Short Details:

  • • Model: ASRock H610M-HDV/M.2
  • • Socket: LGA1700
  • • Memory Types: DDR4
  • • Maximum Memory: 64GB

See More Details

৳10,800

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে মূল্য পরিবর্তন হতে পারে।

EMI Offer(EMI for 6 to 24 Months)
Quantity
General Information
Model ASRock H610M-HDV/M.2
Brand ASRock
Supported Processor Supports 13th Gen & 12th Gen Intel Core Processors
Chipset - Intel H610
Socket LGA1700
BIOS

- 128Mb AMI UEFI Legal BIOS with multilingual GUI support

- ACPI 6.0 Compliant wake up events

- SMBIOS 2.7 Support

- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment

Form Factor

- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm

- Solid Capacitor design

Memory Information
Memory Types DDR4
Channel Dual Channel
Slot 2 x DDR4 DIMM Slots
Supported Bus Speed

- Supports DDR4 non-ECC, un-buffered memory up to 3200

- Supports ECC UDIMM memory modules (operate in non-ECC mode)

Maximum Memory 64GB
Graphics Information
Graphics

- Intel® Xe Graphics Architecture (Gen 12)

- Three graphics output options: D-Sub, HDMI and DisplayPort 1.4

- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz

- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

Expansion Slots
PCI

CPU:

- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage Information
M.2

- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes

SATA - 4 x SATA3 6.0 Gb/s Connectors
Connector Information
Internal Connectors

- 1 x COM Port Header

- 1 x SPI TPM Header

- 1 x Chassis Intrusion and Speaker Header

- 1 x CPU Fan Connector (4-pin)*

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**

- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***

- 1 x 24-pin ATX Power Connector

- 1 x 8 pin 12V Power Connector

- 1 x Front Panel Audio Connector

- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

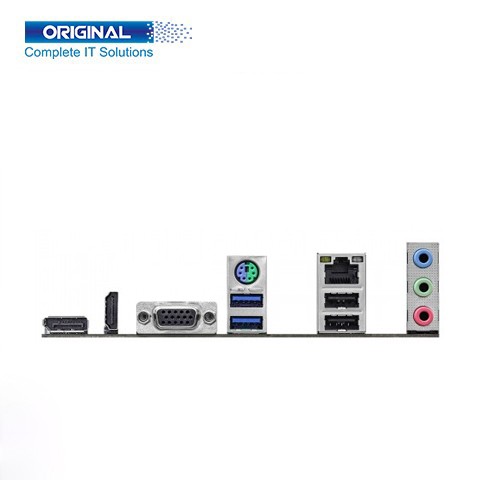

Port Information
PS/2 Port - 1 x PS/2 Mouse/Keyboard Port
HDMI Port - 1 x HDMI Port
USB Port

- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)

- 2 x USB 2.0 Ports (Supports ESD Protection)

LAN Port - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Audio Port - HD Audio Jacks: Line in / Front Speaker / Microphone
Display Port - 1 x DisplayPort 1.4
Antenna - 2 x Antenna Mounting Points
D-Sub Port - 1 x D-Sub Port
Others Information
Support CD

- Drivers, Utilities, AntiVirus Software (Trial Version)

Hardware Monitor

- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans

- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans

- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans

- CASE OPEN detection

- Voltage monitoring: CPU Vcore, +1.05 PCH, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V

Operating Systems
Supported OS - Microsoft Windows 10 64-bit / 11 64-bit
Warranty
Warranty 03 Years Warranty

Descripton:


ASRock H610M-HDV/M.2 12th Gen Micro ATX Motherboard


ASRock H610M-HDV/M.2 12th Gen Micro ATX Motherboard. It supports DDR4 3200MHz. The latest PCI Express 4.0 is capable to perform a breathtaking bandwidth of 64GB, ready to unleash the full potential of future high-end graphic cards. Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.


ASRock H610M-HDV/M.2 12th Gen Micro ATX Motherboard. The Model is ASRock H610M-HDV/M.2, Brand ASRock, Supported Processor Supports 13th Gen & 12th Gen Intel Core Processors, Chipset - Intel H610, Socket LGA1700, BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support, - ACPI 6.0 Compliant wake up events, - SMBIOS 2.7 Support, - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-, Form Factor - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm, - Solid Capacitor design. It is Memory Types DDR4, Channel Dual Channel, Slot 2 x DDR4 DIMM Slots, Supported Bus Speed - Supports DDR4 non-ECC, un-buffered memory up to 3200,- Supports ECC UDIMM memory modules (operate in non-ECC mode), Maximum Memory 64GB. This is Graphics - Intel® Xe Graphics Architecture (Gen 12),- Three graphics output options: D-Sub, HDMI and DisplayPort 1.4, - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz, - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz, - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports, PCI CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*, Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3), - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module. It is M.2 - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes, SATA - 4 x SATA3 6.0 Gb/s Connectors, Internal Connectors - 1 x COM Port Header, - 1 x SPI TPM Header, - 1 x Chassis Intrusion and Speaker Header, - 1 x CPU Fan Connector (4-pin)*, - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**, - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***, - 1 x 24-pin ATX Power Connector, - 1 x 8 pin 12V Power Connector, - 1 x Front Panel Audio Connector, - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection), - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection), PS/2 Port - 1 x PS/2 Mouse/Keyboard Port, HDMI Port - 1 x HDMI Port, USB Port - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection), - 2 x USB 2.0 Ports (Supports ESD Protection), LAN Port - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), Audio Port - HD Audio Jacks: Line in / Front Speaker / Microphone, Display Port - 1 x DisplayPort 1.4, Antenna - 2 x Antenna Mounting Points, D-Sub Port - 1 x D-Sub Port. The ASRock H610M-HDV/M.2 12th Gen Micro ATX Motherboard has a 03 Years Warranty.
