| Price | : | To be announced |
| Status | : | Out of Stock |
| Brand | : | Afox |
| Product Code | : | IH510-MA2 |
| General Information | ||
| Model | Afox IH510-MA2 | |
| Brand | Afox | |
| Supported Processor | Intel Core i3, i5, i7, i9 10th & 11th Generation Processors | |
| Chipset | Intel H510 | |
| Socket | LGA1200 | |
| BIOS | UEFI BIOS | |
| Form Factor | Micro-ATX (17 x 22cm) | |
| Memory Information | ||
| Memory Types | DDR4 | |
| Channel | Dual Channel | |
| Slot | 2 x Memory slots | |
| Supported Bus Speed | 2133 / 2400 / 2666 / 2800(O.C.) / 3000 (O.C.) / 3200 (O.C.) MHz 1.2V | |
| Maximum Memory | 64GB | |
| Graphics Information | ||
| Graphics | Intel HD graphics | |
| Expansion Slots | ||
| PCI | PCI / PCI-E-slots: 1 x PCI Express x16 4.0 slot, 1 x PCI Express x1 slot |
|
| Storage Information | ||
| M.2 | 1 x M.2 (PCIe NVMe Gen3 x4) | |
| SATA | 4 x SATA III | |
| Connector Information | ||
| Internal Connector | 2 x USB 2.0 pinheader (supports additional 4 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader 1 x Com |
|
| Port Information | ||
| PS/2 Port | 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port |
|
| USB Port | 2 x USB 3.0 Ports 4 x USB 2.0 Ports |
|
| HDMI Port | 1 x HDMI Port | |
| D-Sub Port | 1 X DP Port | |
| LAN Port | 1 x RJ-45 LAN Por | |
| Audio Jack | 3 x HD Audio Jacks (Line in / Front Speaker / Microphone) | |
| Other Information | ||
| Accessories | 1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
|
| Operating System | ||
| Supported OS | Windows 10 | |
| Warranty | ||
| Warranty | 2 Years Warranty | |

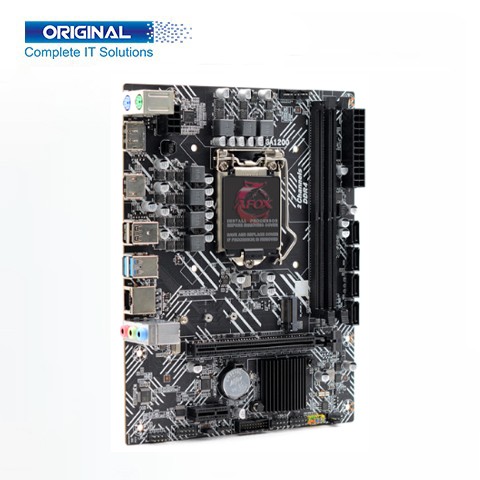

Afox IH510-MA2 Intel DDR4 10th/11the Gen Motherboard. The motherboard supports 10th and 11th-generation processors. Its maximum memory capacity is 64GB. It also supports Realtek 662 onboard audio and Realtek RTL8111 Ethernet onboard LAN. Additionally, it is motherboard included 6 mounting holes.
Afox IH510-MA2 Intel DDR4 10th/11the Gen Motherboard. The Model is Afox IH510-MA2, Brand Afox, Supported Processor Intel Core i3, i5, i7, i9 10th & 11th Generation Processors, Chipset Intel H510, Socket LGA1200, BIOS UEFI BIOS, Form Factor Micro-ATX (17 x 22cm), Memory Types DDR4, Channel Dual Channel, Slot 2 x Memory slots, Supported Bus Speed 2133 / 2400 / 2666 / 2800(O.C.) / 3000 (O.C.) / 3200 (O.C.) MHz 1.2V, Maximum Memory 64GB. It is Graphics Intel HD graphics, PCI PCI / PCI-E-slots: 1 x PCI Express x16 4.0 slot, 1 x PCI Express x1 slot, M.2 1 x M.2 (PCIe NVMe Gen3 x4), SATA 4 x SATA III, Internal Connector 2 x USB 2.0 pin-header (supports additional 4 USB 2.0s), 1 x USB 3.0 pin-header (supports additional 2 USB 3.0s), 1 x Front Panel Audio pin-header, 1 x Com, PS/2 Port 1 x PS/2 Mouse Port, 1 x PS/2 Keyboard Port, USB Port 2 x USB 3.0 Ports, 4 x USB 2.0 Ports, HDMI Port 1 x HDMI Port, D-Sub Port 1 X DP Port, LAN Port 1 x RJ-45 LAN Por, Audio Jack 3 x HD Audio Jacks (Line in / Front Speaker / Microphone), Supported OS Windows 10. The Afox IH510-MA2 Intel DDR4 10th/11th Gen Motherboard has a 2 Years Warranty.
